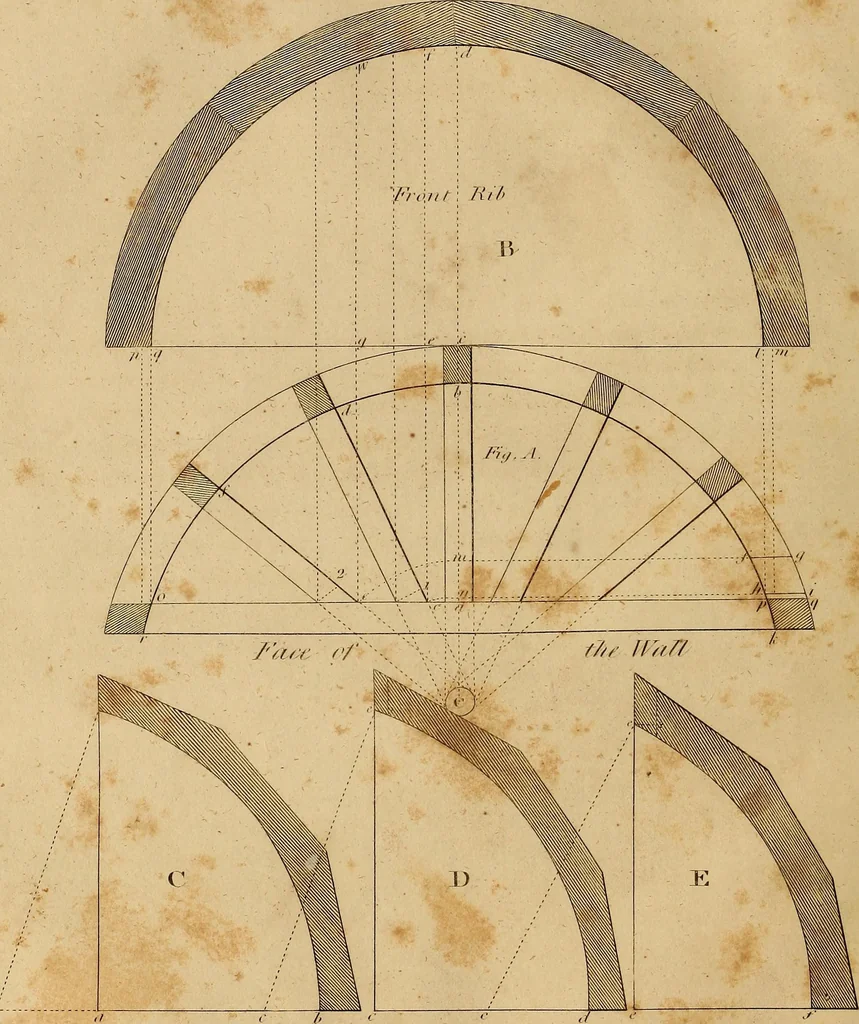

rh</^ \7. … jy^/// r/^c />r/ik/iY/>s CRADLING TO NICHES. 47 them, each equal to half the height de, at B or F, draw the hypothenuse g 4, and hm, drawthe perpendicular ordinates from the chords through the intersection of the other lines thatmeet at the angles, then trace the moulds D and C, from the…
