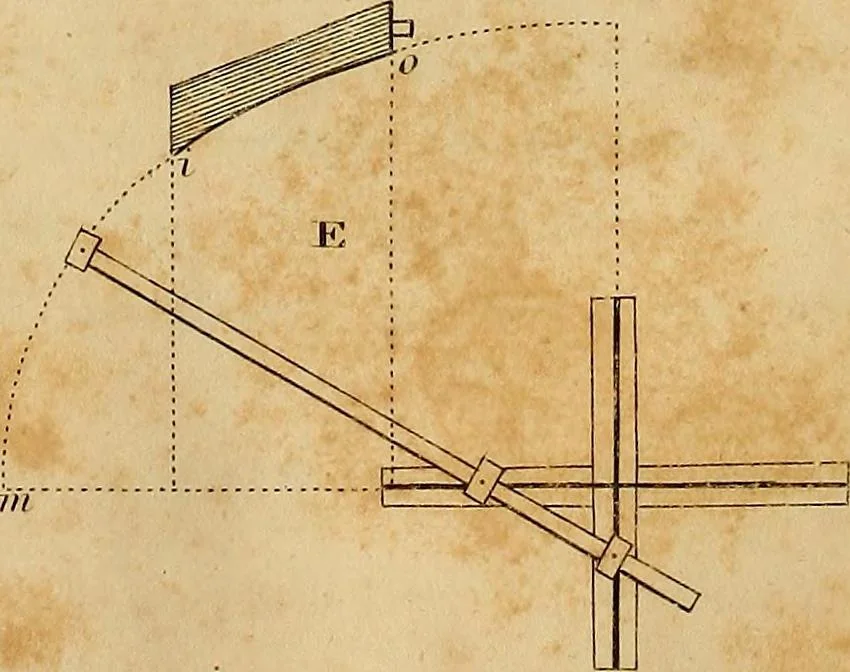

CRADLING TO DOMES. 55 PLATE XXXII. Fig. r/2 is the plan of an feUiptical domical sky-light over a staircase; 5 and C are thesections, which show how to place your ribs. How to proportionate the Length of the inside Curb to-any Width given. Proceed as directed in page 58 for an elliptical dome, that…
