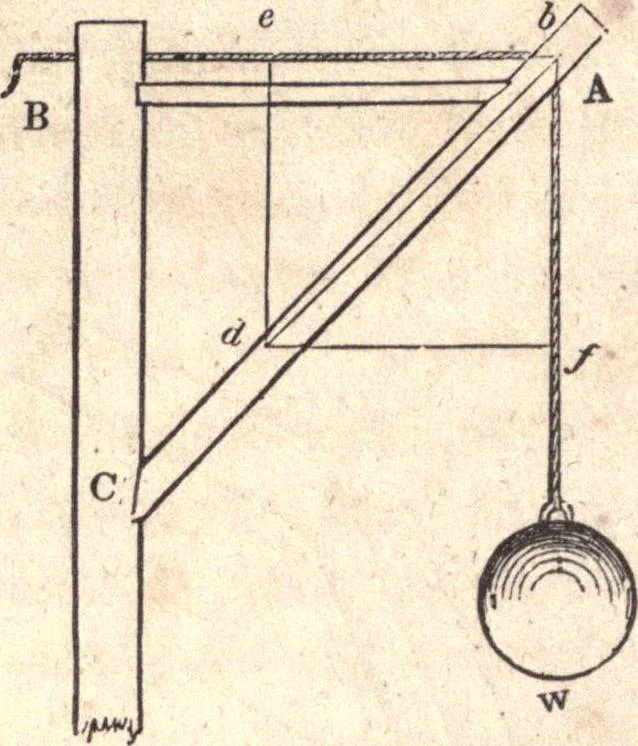

nd completethe parallelogram of forces, ebfd; then b d, the diagonal of the 136 AMERICAN HOUSE-CARPENTER. parallelogram, will be the direction, and its length will be theamount, of the united pressures of A and of B. The line, b d, istermed the resultant of the two forces, b f and be. If A and B… … Fig. 190. 253.—Another example: let Fig. 190 represent a piece olframing commonly called a crane, which is used for hoistingheavy weights by means of the rope, B b /, which passes over apulley at b. This is similar to Fig. 187 and 188, yet it is mate-rially different. In those figures, the strain…
