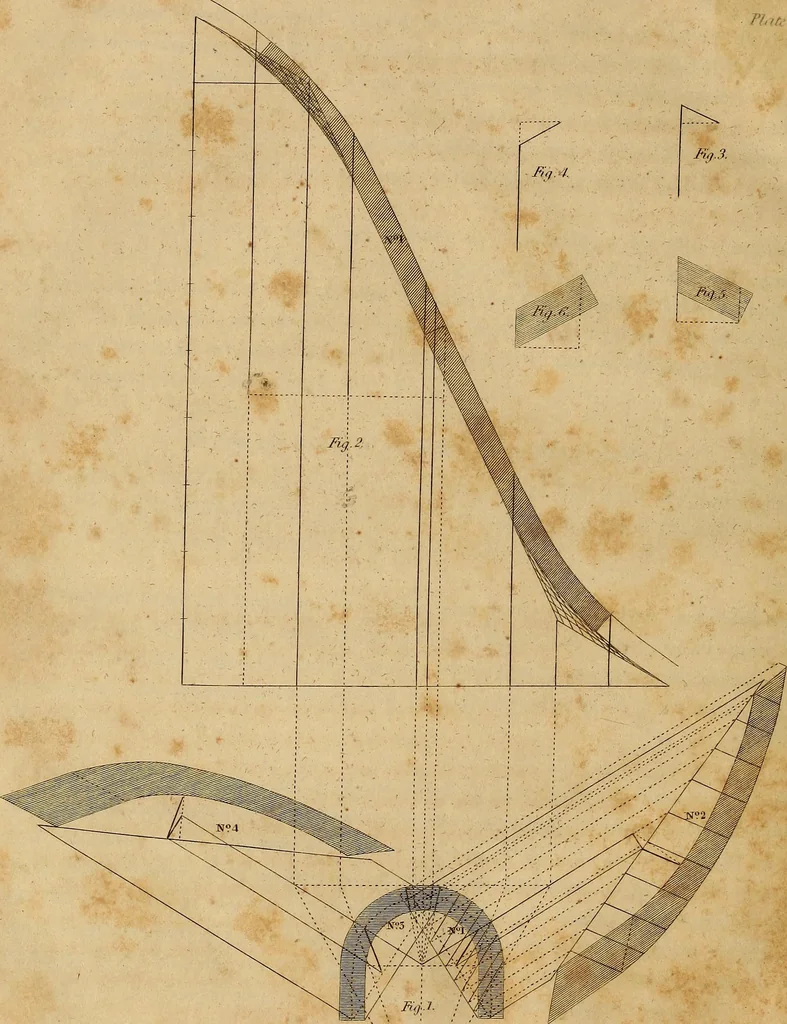

the middle parts of the falling mould beingraised over the nosings of the winders, and the more it is raised above the winders the greaterwill the face mould of the lower wreathed piece exceed the length of the mould of theupper wreathed piece, and unless that (if supposing a line passing through… … STAIR-CASING. fll PLATE LXVI. To describe the Moulds for a Hand Rail, ivhen the Plank is sprung with Butt Joints. Fig. 1. Plan of the rail with the lower and upper face moulds: No. 1, the plan of thelower wreathed rail piece: No. 2, the face mould of the said rail,piece: No. 3, plan of theupper…
