The carpenter's new guide: being a complete book of lines for carpentry and joinery. Treating fully on practical geometry, soffits, brick and plaster groins ... with a great variety of designs for roofs, trussed girders ... with many other things entirely new: the whole founded on true geometrical principles; the theory and practice well explained and fully exemplified on eighty-four copper-plates; including some observations and calculations on the strength of timber (1830)

Nicholson, Peter, 1765-1844 · Philadelphia, J. Grigg · leaf 245

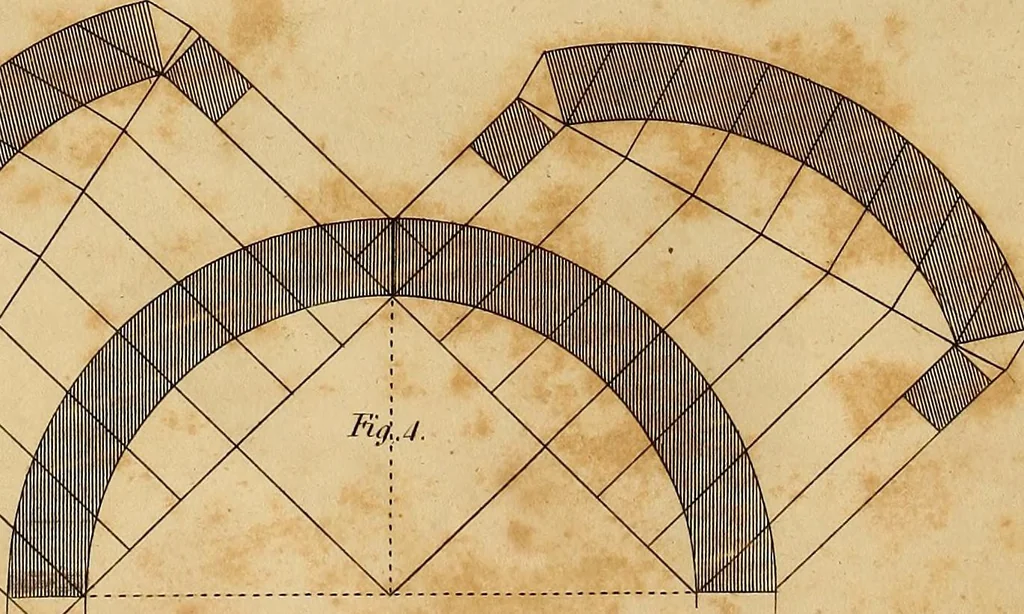

An illustration from The carpenter's new guide: being a complete book of lines for carpentry and joinery. Treating fully on practical geometry, soffits, brick and plaster groins ... with a great variety of designs for roofs, trussed girders ... with many other things entirely new: the whole founded on true geometrical principles; the theory and practice well explained and fully exemplified on eighty-four copper-plates; including some observations and calculations on the strength of timber, 1830, leaf 245
Jlafe 68. … XiiliB/ HAND-RAILING. 103 an ordinate on the plan through each extremity of the convex side, and finding the correspond-ing points of the face mould. VXZ, figure 3, is the spring of the plank. The completion of the upper half of the face mould for the wreath part of the rail will beshown in the…
