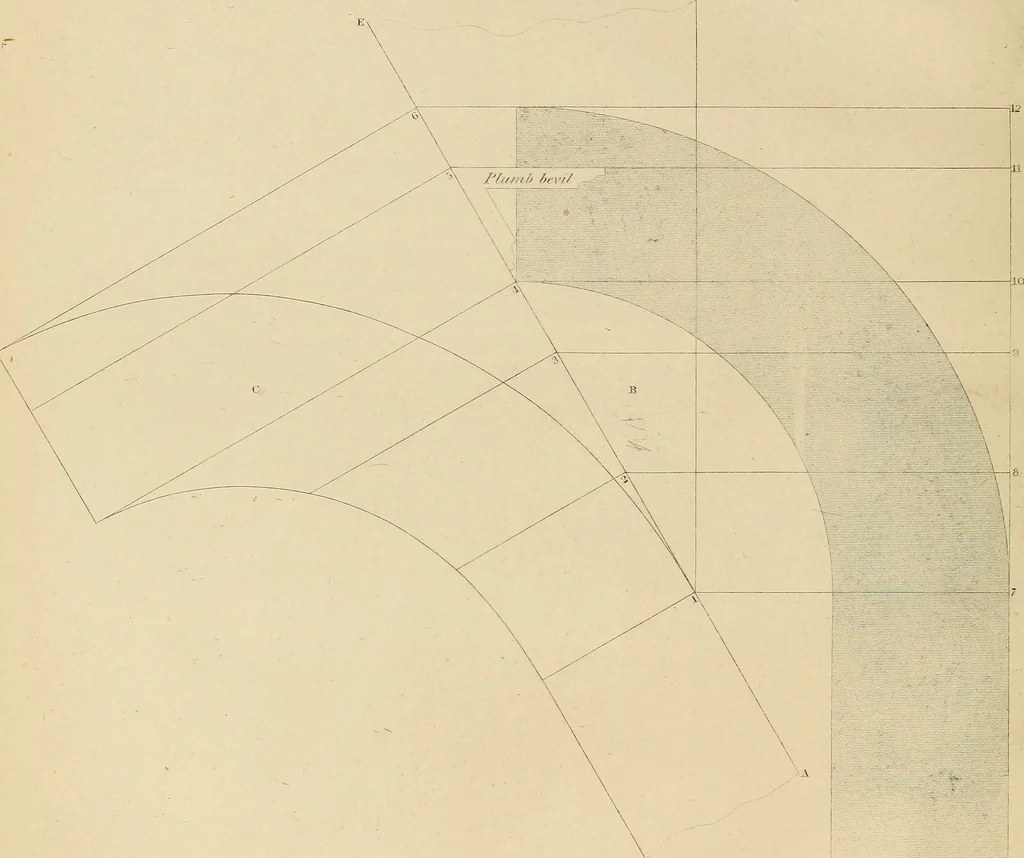

Z%//, 6V. … HAND-RAILING. 89 PLATE 64. Face mould for the twist of the scroll. B the pitchboard. Draw a sufficient number of ordinates through the plan, and from the points 1, 2, 3, &c.,draw ordinates at right angles to the line A E, and transfer the distances 1, 7, 2, 8, &c., uponthese lines, and…
