The carpenter's new guide: being a complete book of lines for carpentry and joinery. Treating fully on practical geometry, soffits, brick and plaster groins ... with a great variety of designs for roofs, trussed girders ... with many other things entirely new: the whole founded on true geometrical principles; the theory and practice well explained and fully exemplified on eighty-four copper-plates; including some observations and calculations on the strength of timber (1830)

Nicholson, Peter, 1765-1844 · Philadelphia, J. Grigg · leaf 41

An illustration from The carpenter's new guide: being a complete book of lines for carpentry and joinery. Treating fully on practical geometry, soffits, brick and plaster groins ... with a great variety of designs for roofs, trussed girders ... with many other things entirely new: the whole founded on true geometrical principles; the theory and practice well explained and fully exemplified on eighty-four copper-plates; including some observations and calculations on the strength of timber, 1830, leaf 41

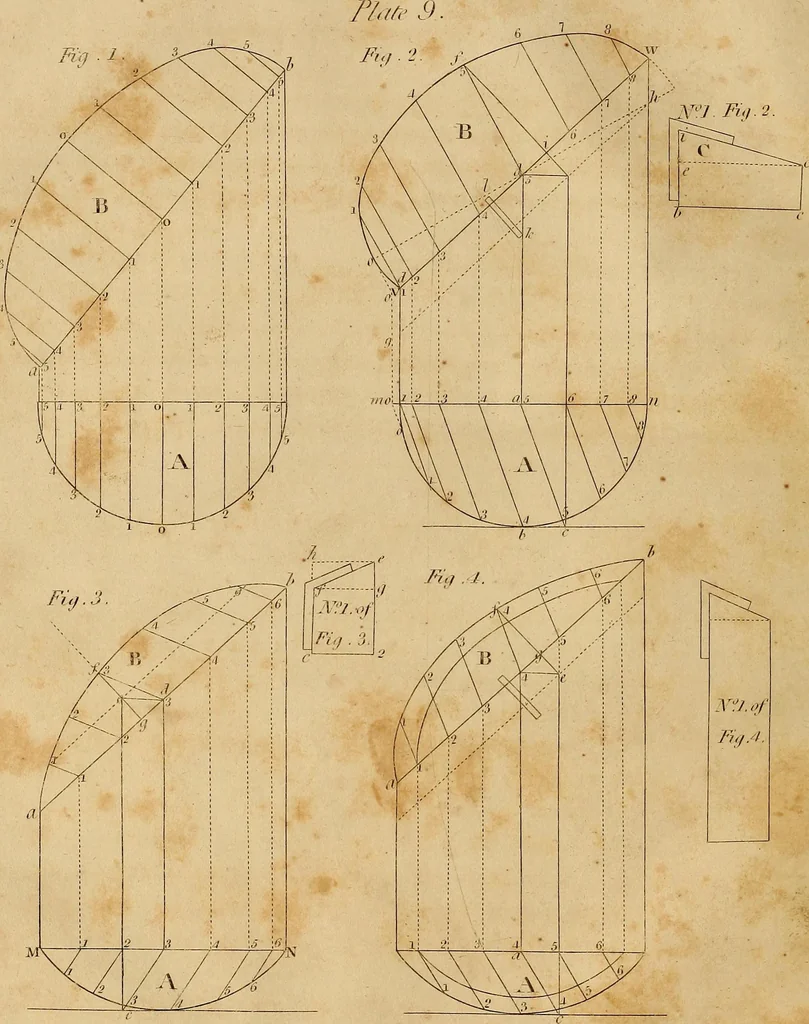

// n -i.Q^ … PRACTICAL GEOMETRY. si Hoiu to draw a flat Segment of a Circle nearly true. Divide the length of the segment into equal parts each way, from the centre d, as before, jl and draw the lines 11, 22, 3 3, 4 4, 5 5, all at right angles, to the length «6; lines being drawn to the crown at c, from the…
