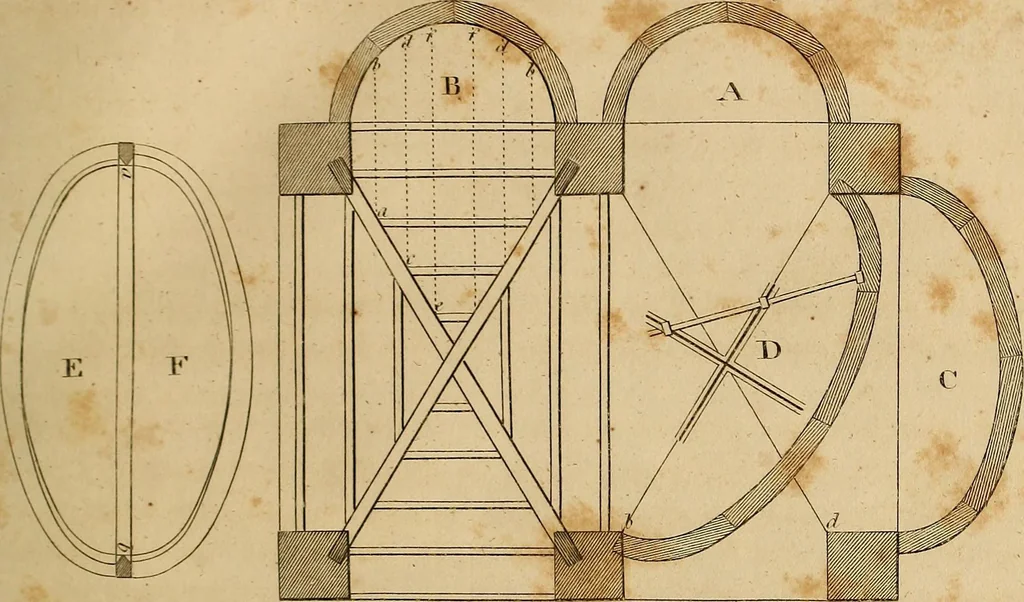

df: then the distance from b to b shows the length of the first jackrib, from dtod the length of the second, and from/ to/ the third. How to bevel the Angle Bibs, so that they shall range with each opening of the Groin. First get the ribs out in two halves or thicknesses, as at JE and F, then draw… … Fu/ .
