The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber (1854)

Nicholson, Peter, 1765-1844, Davis, Noah Knowles, 1830- ed, Sloan, Samuel, 1815-1884, ed · Philadelphia, Lippincott, Grambo & Co. · leaf 195

An illustration from The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber, 1854, leaf 195

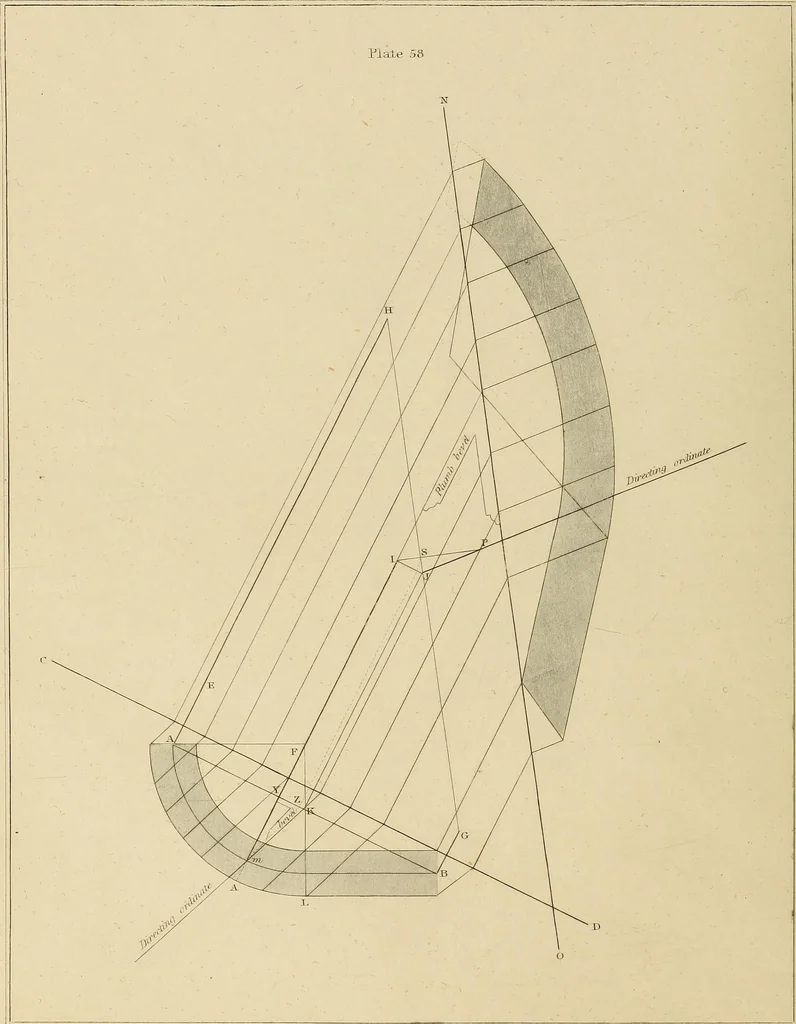

HAND-RAILING. PLATE 58. To draw ilw Face-mould. Let J. m B be the plan of the rail; draw th« chord A B, also the line CD, parallel to it;make the lines ^i^ (r equal in height to the lines BL I, Plate 57. Join GH-, also draw IJparallel to CD, and at the point J let fall the perpendicular line JK.…
