The carpenter's new guide: being a complete book of lines for carpentry and joinery (1850)
Nicholson, Peter, 1765-1844. [from old catalog], Johnston, William, architect. [from old catalog] · Philadelphia, Lippincott, Grambo and co. · leaf 212

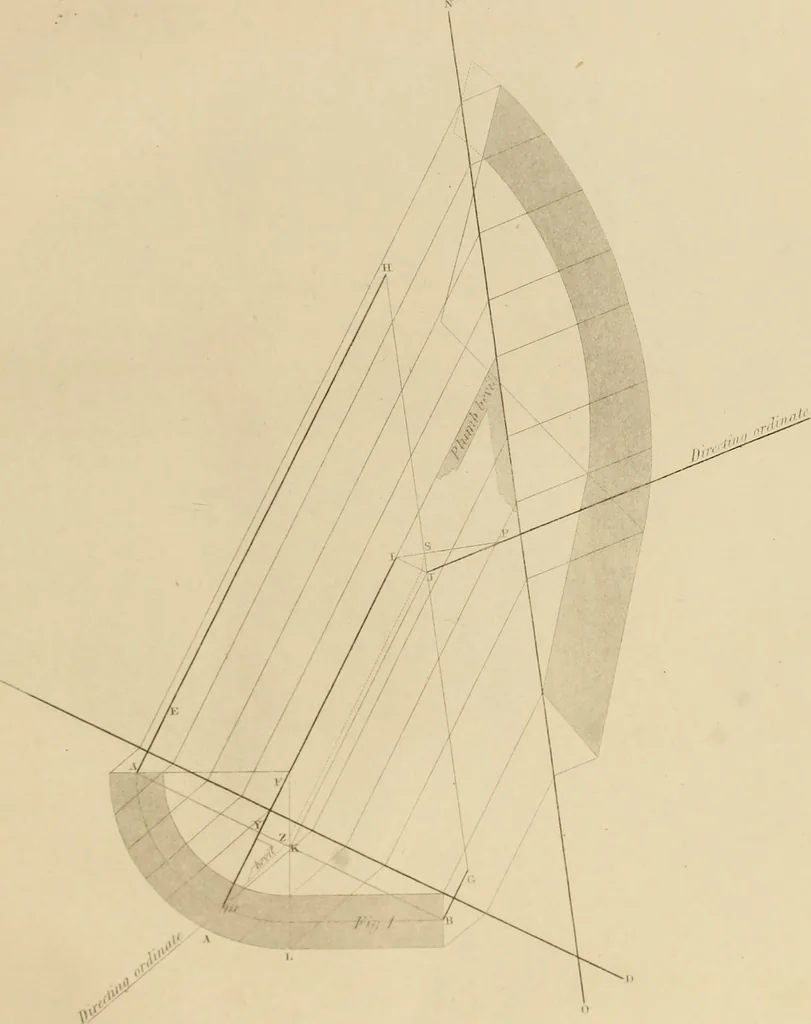

d N 0, also draw / P at right angles with the line H G, and with the distance K M,from the point / as a centre, bisect the line IP oX P. Join J P, which gives the directingordinate for the face mould—transfer the ordinates from the plan, and set them from thechord O N, and through the points trace… … //.;/. J ■
Carpentry
