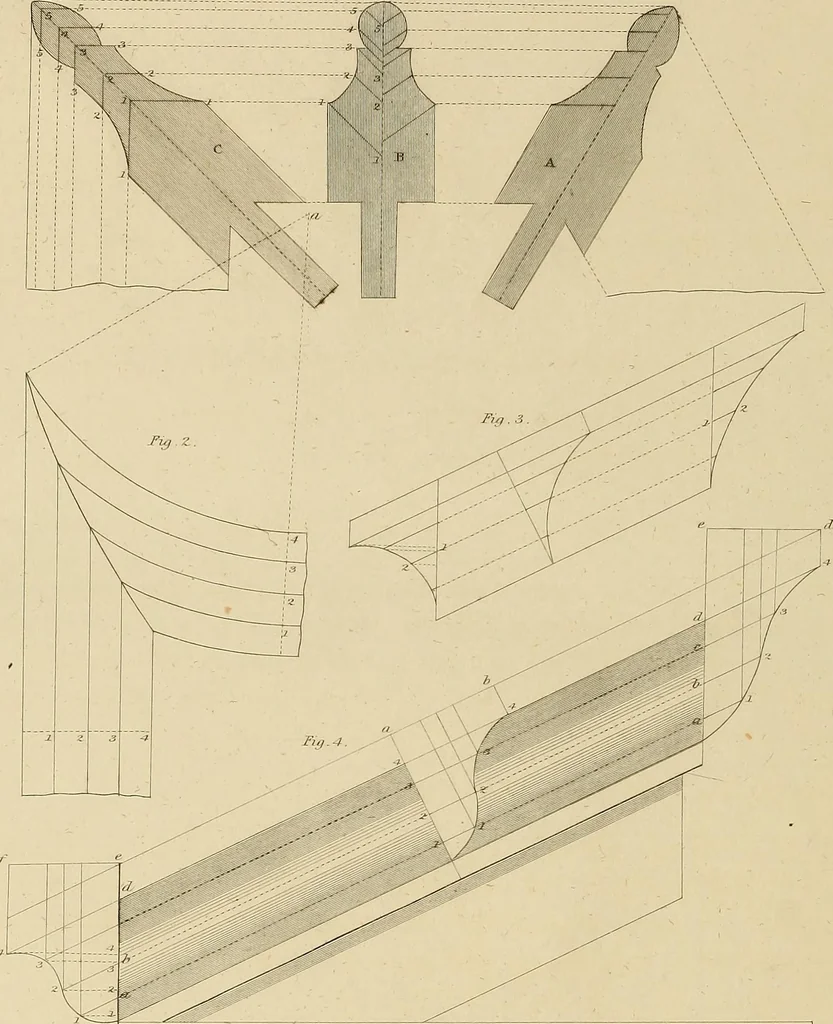

Plate n -fu/.J. … MOULDINGS. 93 PLATE 77. To describe tJie Angle Bars for Shop Fronts, •Fig. 1. B is a common bar, and c is the angle bar of the same thickness; take theraking projection 1,1, in c, and set the foot of your compass in 1 at b, and cross the middleof the base at the other 1; then draw the lines 2, 2;…
