The carpenter's new guide: being a complete book of lines for carpentry and joinery (1850)
Nicholson, Peter, 1765-1844. [from old catalog], Johnston, William, architect. [from old catalog] · Philadelphia, Lippincott, Grambo and co. · leaf 173

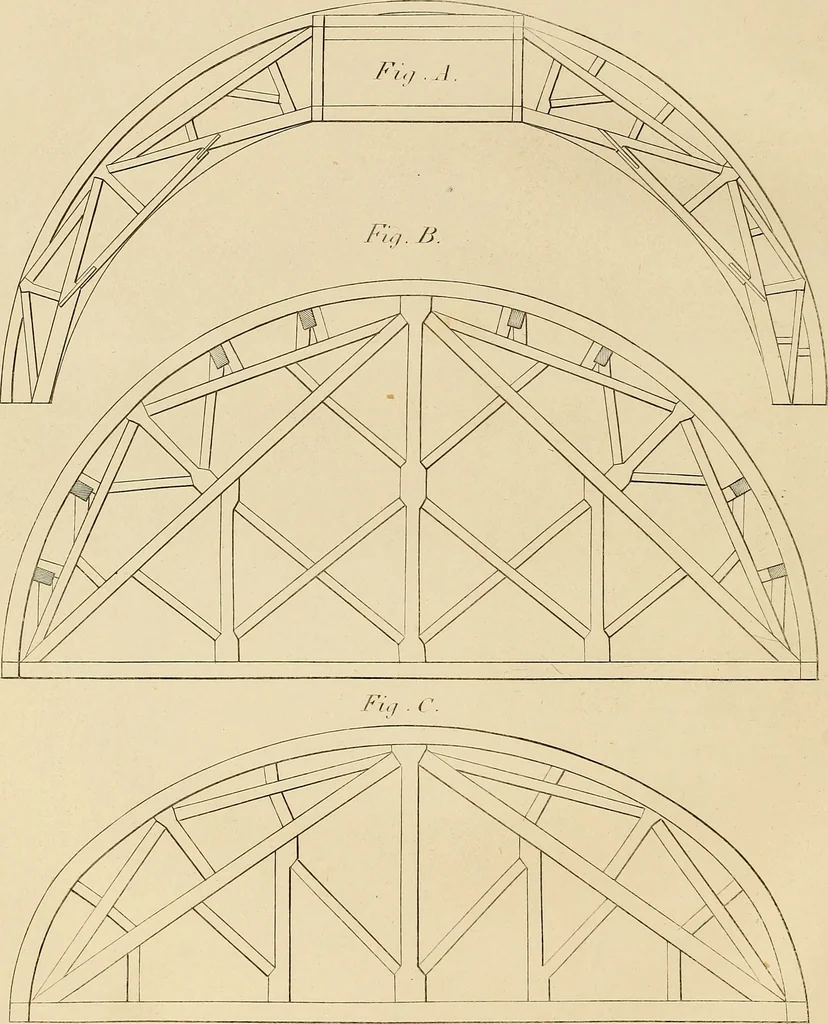

r/nu. v<y. … DESIGNS OF ROOFS. 73 PLATE 48. Fig. a is another design for a domical roof; the bottom of it is made into a very narrowcompass, in order to gain room within the dome. Figures B and C are designs for circular and elliptical trusses for bridges, &c. Thesetrusses may also be applied to roofs where…
Carpentry
