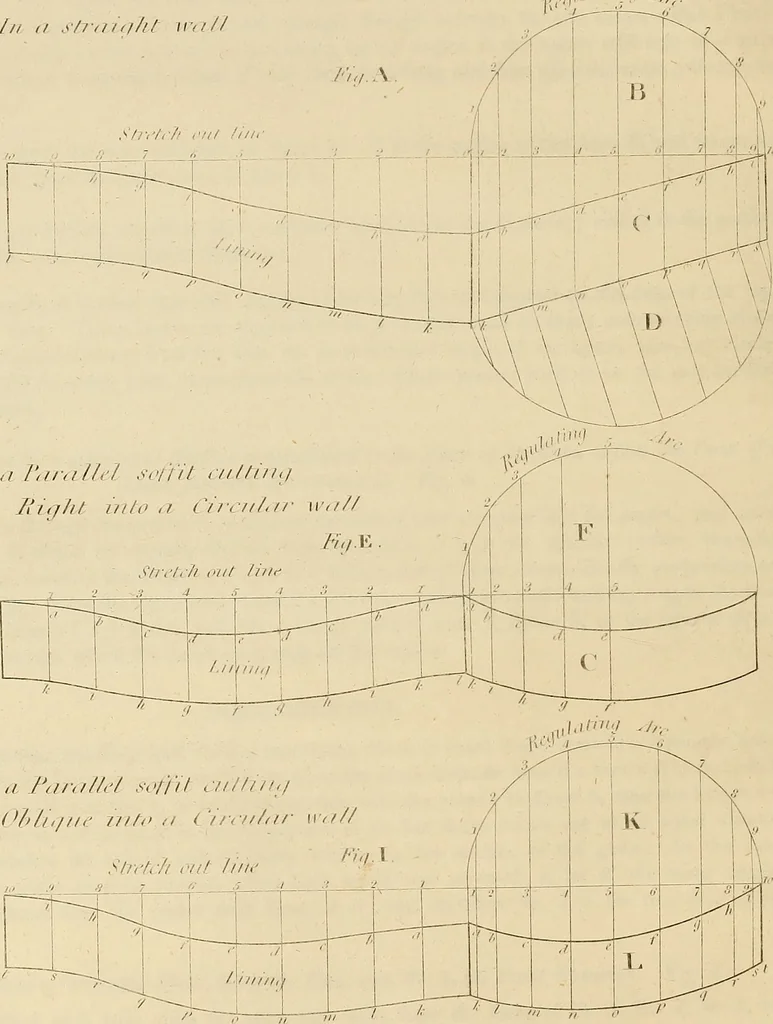

plan, and make them the bases of No. 2, No. 3, No. 4, andNo. 5; divide each base into five equal parts ; also divide the half of No. 1, into six parts, and draw theordinates from the equal divisions, perpendicular to each base ; then prick each from No. 1, as the figuresdirect, will give the form… … tiling r£7- a J\ir<i//</ >\>llil cn//ni;i Ol>lii/ii<- nif<> ii ( ir<ii/ti/ Mv/// OF CARPENTRY. LININGS FOR SOFFITS. DEFINITION. The lining of a Soffit, in the Theory of Carpentry, signifies the covering of any concave Surface of a Solid spread out on a Plane if possible.…
