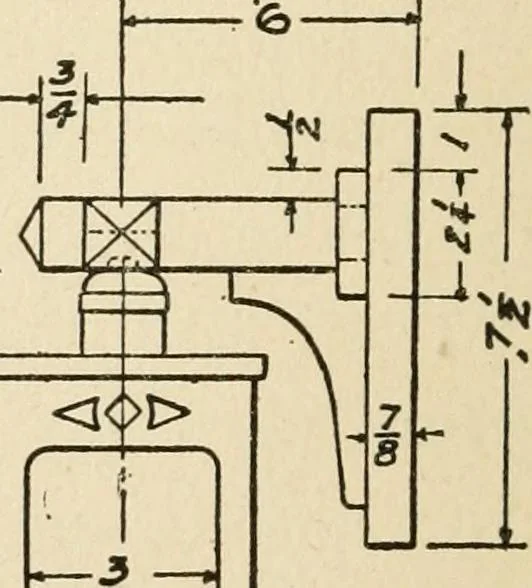

=£ When these two pieces have been fitted neatlyand squarely together, drill two holes for the endsof the sockets to fit in and two smaller ones clearthrough for the wires, which are carried alongthrough grooves to the central arm, where theyjoin and pass to the back. The two wall blocks WALL… … ^-4^i-^ are now in order, the smaller one being mortisedto match the central arm. The curved bracketremains to be shaped up, after which the wholemay be put together, using glue and a few nailsso placed as to be invisible. The completed wall LAMPS FOR THE HOME 213 bracket and the two shades should…
