Carpentry made easy, or, The science and art of framing, on a new and improved system : with specific instructions for building balloon frames, barn frames, mill frames, warehouses, church spires, etc., comprising also a system of bridge building, with bills, estimates of cost, and valuable tables ... (1857)
Bell, William E · Philadelphia : Howard Challen · leaf 122

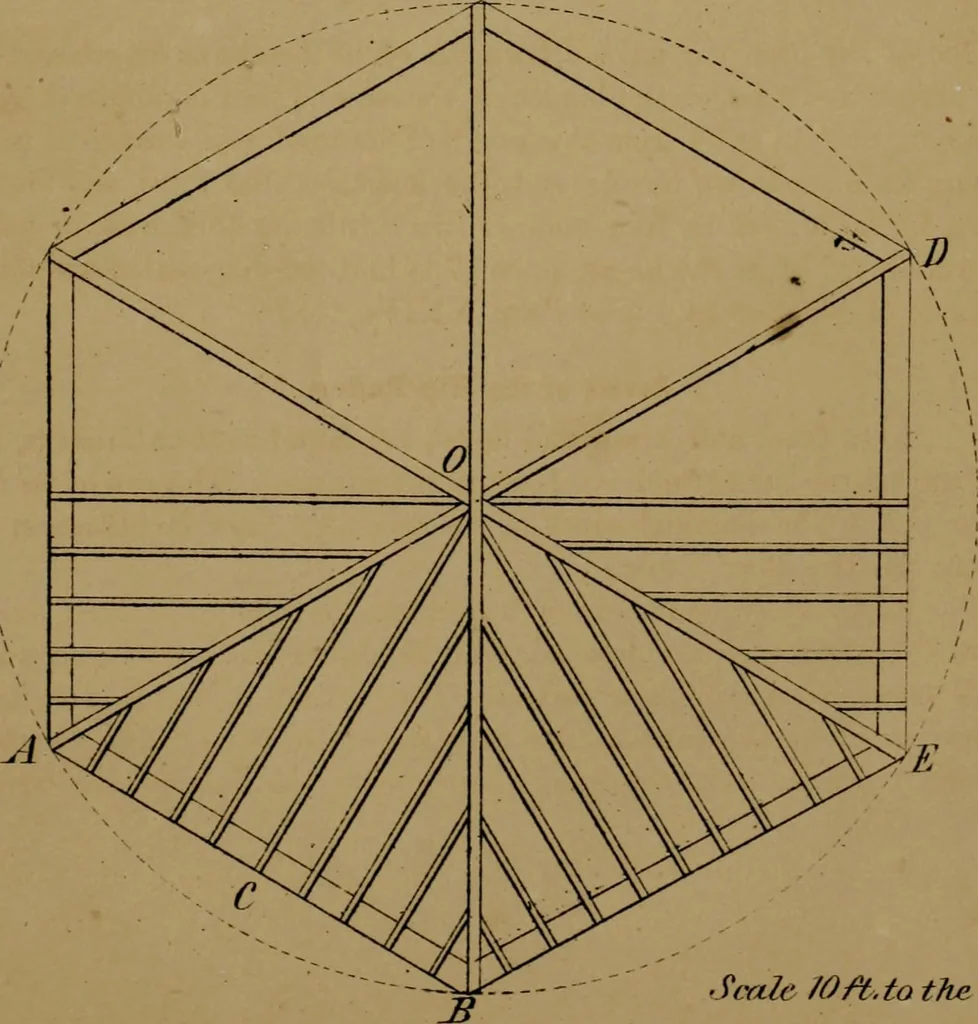

Fu/J . V \ Tiua.LroakaldttS9U.I1uU. … Fi0.Z, Scale 70 ft. to the. jn^h OCTAGONAL AND HEXAGONAL ROOFS. 79 cut CD both sides of the upper end; and that bevel is found bj takingthe length of the rafter and its run on ihe square. The hacking of the hip rafter is obtained on the square by taking ^^of its rise on the tongue, and its lenylli…
Carpentry · Bridges
