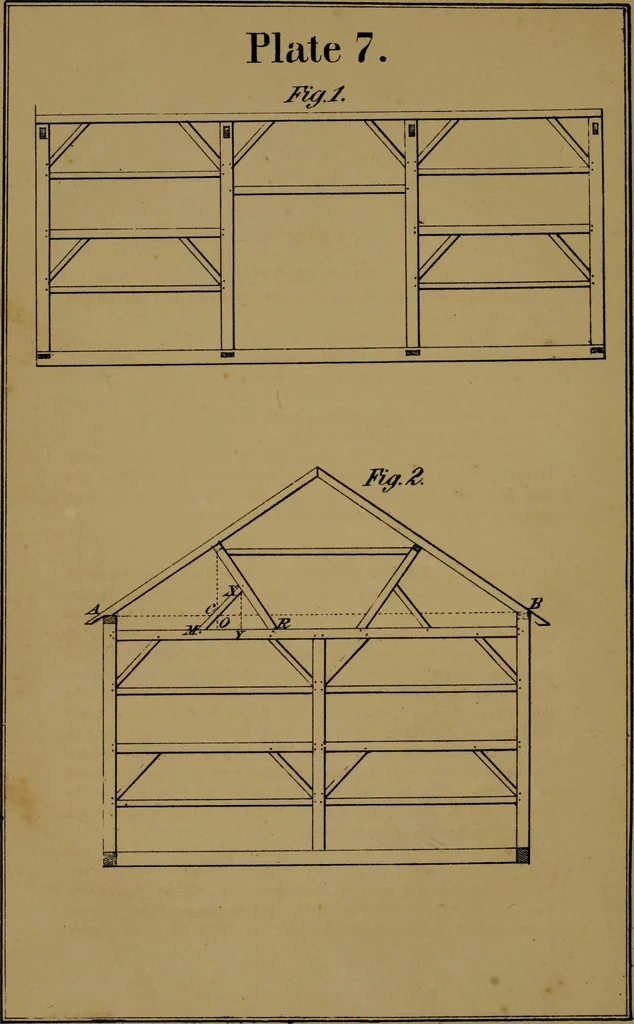

ds,* the mortar is pressedin between every board, making it almost air-tight. Third—the wall itself is made more solid. For the mortar beingpressed against the lining-boards, is forced both ways, both up anddo^vn, forming more perfect clinchers. * When & building is thus lined on the inside, it… … PLATE 7. BARN FRAMES. Plate 7 represents the frame of a bam 30 by 40 feet, and 16 fee*high betAveen shoulders. The sills are 12 inches square; Posts and large girders, 10 inches square; Plates and girders over main doors, 8 by 10; Purlin plates, 6 by 6; Purlin posts and small girders, 6 by 8;…
