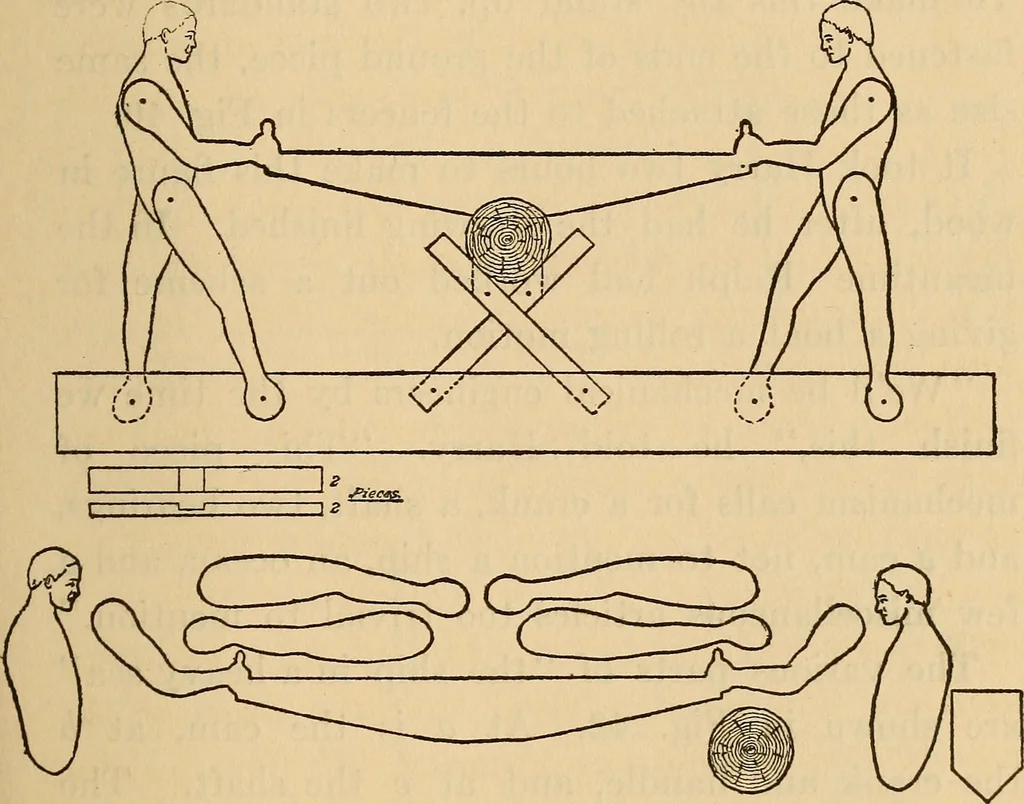

ces, two bodies, four legs,a saw and arms in one piece, two straight pieces forthe saw bück, the log, and a little triangulär pieceto go between log and saw bück. The object ofthis triangle is to leave a space between the log 50 MOVING TOYS 51 and saw bück for the passage of the saw back andforth,… … Fig. 41. The sawyers were first put together by fastening both legs to thebody with one %-inch brad. The feet were next fastened to the straight piece,10 inches long, representing the ground, by one 52 CARPENTRY AND WOODWORK brad through each foot, the bodies standing up-right, and the feet two…
