The car wheel; giving the results of a series of investigations (1907)

Fowler, George Little, 1855-1926 · Pittsburgh, Pa., Schoen Steel Wheel Co. · leaf 93

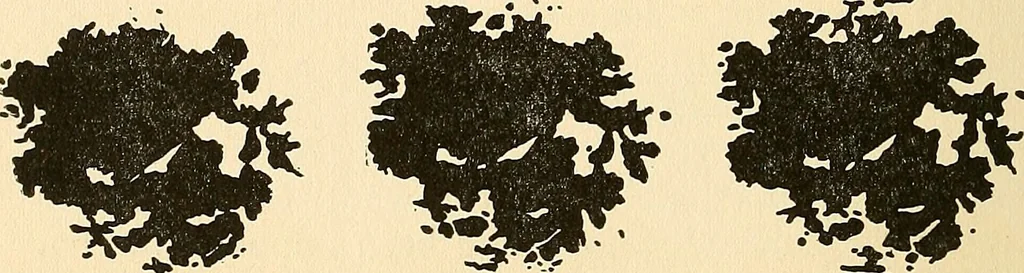

An illustration from The car wheel; giving the results of a series of investigations, 1907, leaf 93 — 59,000 Lbs. Av. Pressure per Sq. In- 118,000 Lbs. Area .50 Sq. In. … 65,000 Lbs. Av. Pressure per Sq. In. 118 181 Lbs. Area .55 Sq. In. 70,000 Lbs. Av. Pressure per Sq. In. 118,644 Lbs. Area .59 Sq. Jn. 75,000 Lbs. Av, Pressure per Sq In. 122,950 Lbs. Area .61 Sq. In. CONTACTS BETWEEN 33-IN. CAST IRON WHEEL AND 100-LB. RAIL. 88 s^f
