Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 112

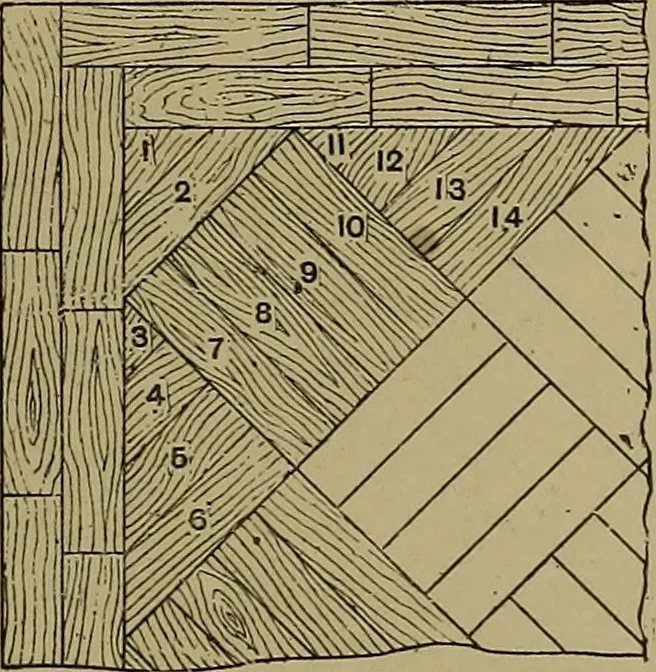

e themin the left-hand angle, and make a mark onthe margin where the edge of the secondblock reaches. This will be the point forfixing the small triangular piece, markedNo. 1 ; next fix the block marked 2, andthen Nos. 3, 4, 5, 6, 7, in due order. Thisarrangement makes the insertion of thetongues… … Fig. 393.—Tile Design with 12-in. Blocks. him follow on with Nos. 9 to 14 consecu-tively, when the first man will lay Nos. 15and 16, and the second Nos. 17 and 18, andso on. The shaded portion in Fig. 391represents the recess between a chimney-breast and the wall. If a beginning weremade against a…
Carpentry · Joinery
