Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 143

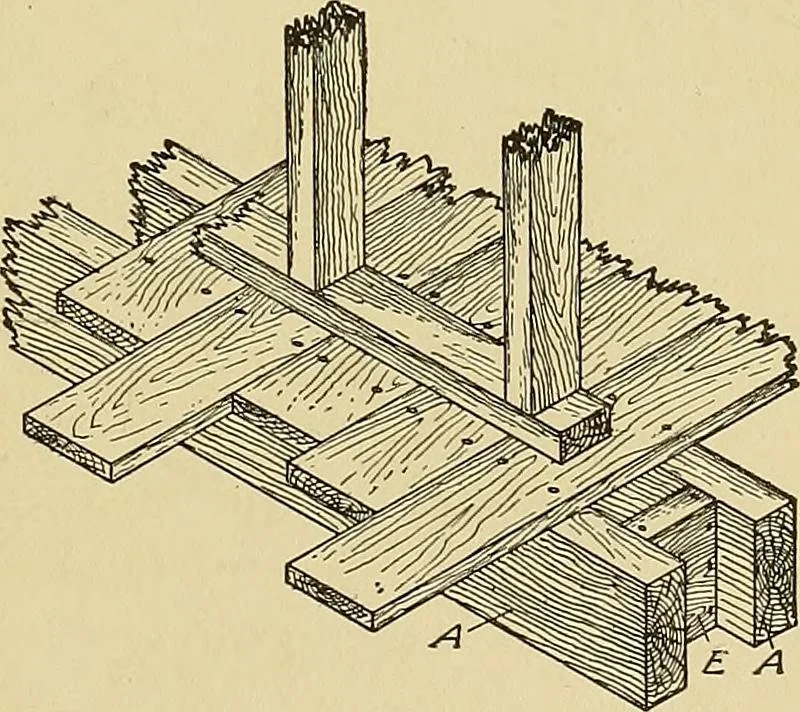

the other joists ofthe floor, and, therefore, joists 3or even 4 inches thick shouldbe used. They should be placedabout 6 or 7 inches apart on cen-ters, and plank bridging shouldbe cut in between them at inter-vals of from 14 to 20 inches, as shown at E in Fig. 144, in order tostiffen them and make… … Fig. 144. Approved Construction for Par-tition Support 111 100 CARPENTRY A partition, supported as described above, is bound to settlesomewhat as the 10 or more inches of joist beneath it shrinks in seasoning, and the settlementmay cause cracks in the plaster-ing at the corner between thepartition…
