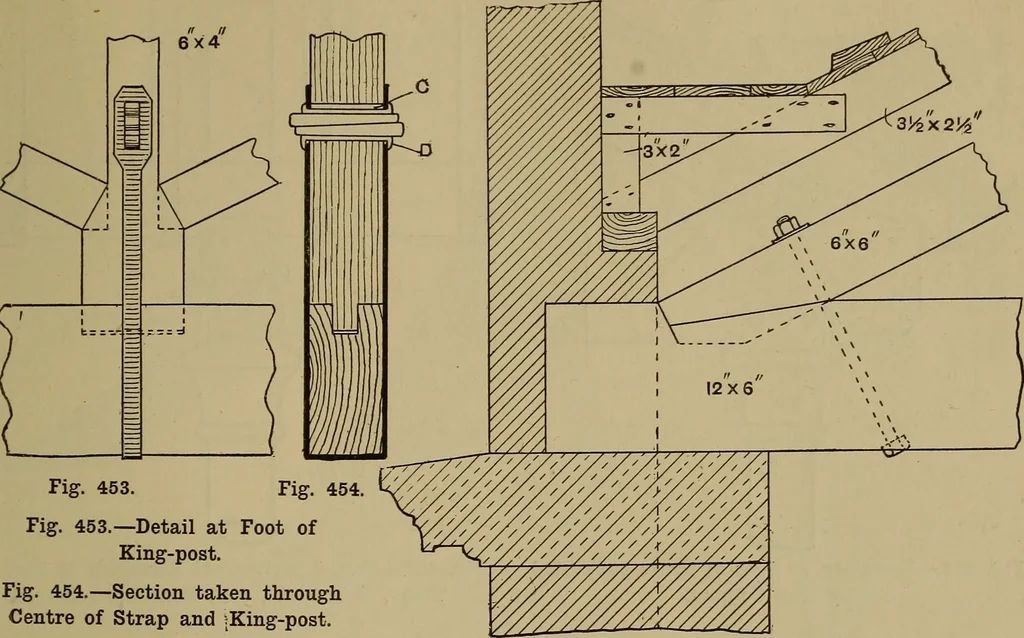

V ^= TIMBER ROOFS. 121 … Fig. 453. Fig. 454 Fig. 453.—Detail at Foot ofKing-post. Fig. 454.—Section taken throughCentre of Strap and jKing-post. Fig. 455.—Detail at Foot of Truss in Connection with Parapet. SCANTLINGS FOR TIMBER R00F5. The table below shows at a glance the respective scantlings for collar, king-post, and…
