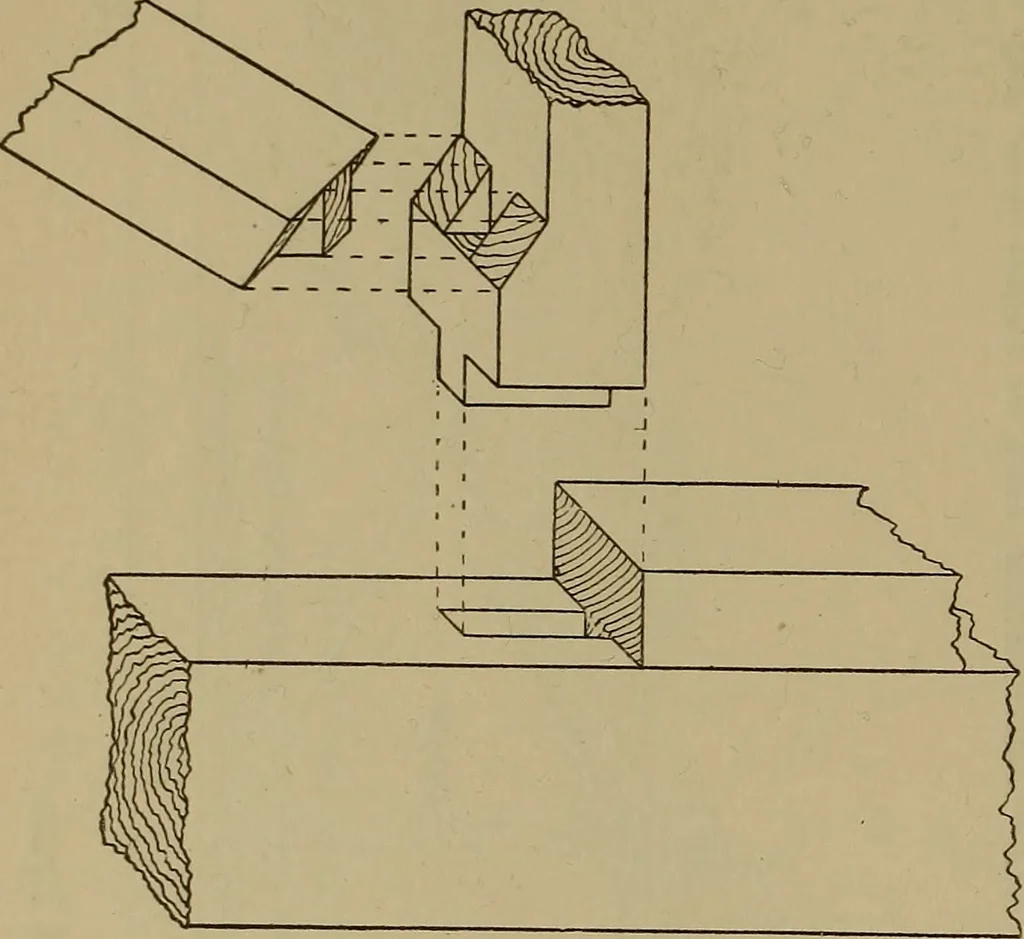

128 CARPENTKY AND JOINERY. the dragging tie, which is notched at oneend on to the wall-plates, at the anglewhere they are halved together, and at theother end is attached to the angle tie or … Fig. 478.- -Conventional View of Joints at A(Fig. 473). brace by means of a tusk tenon secured bya pin or wedge, the angle tie being notchedover the wall-plates to keep it in place.There is more than one method of construct-ing this joint. The dragon piece and angletie should be used in all hipped…
