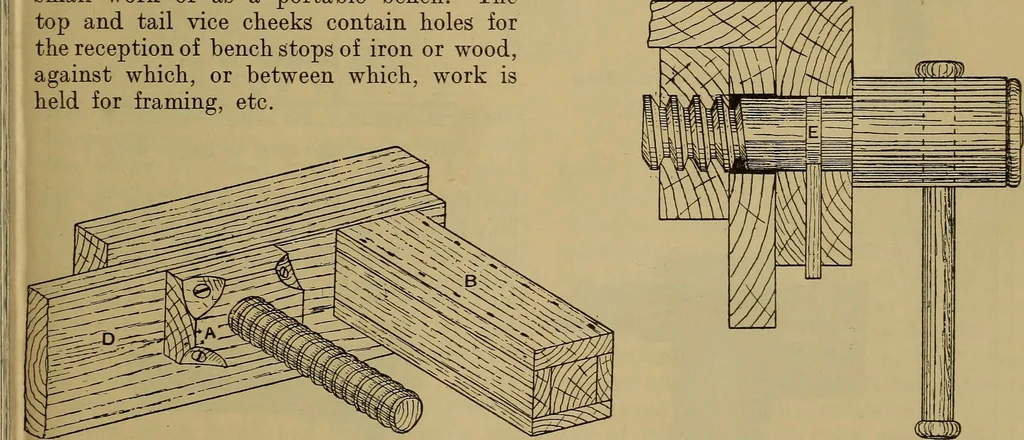

forsmall work or as a portable bench. Thetop and tail vice cheeks contain holes forthe reception of bench stops of iron or wood,against which, or between which, work isheld for framing, etc. Fig. 28.—Wooden Bench Screw Vice. to the vice cheeks. To fasten the viceouter cheek and screw together, so… … Fig. 29.—Inside View of Screw Vice. Bench Screws.—A common form of joinersbench screw is shown by Fig. 28, insideand sectional views being shown respectivelyby Figs. 29 and 30. d is the side or cheekof the bench to which a wooden nut (a)is screwed. The box b, which accurately Fig. 30.—Section…
