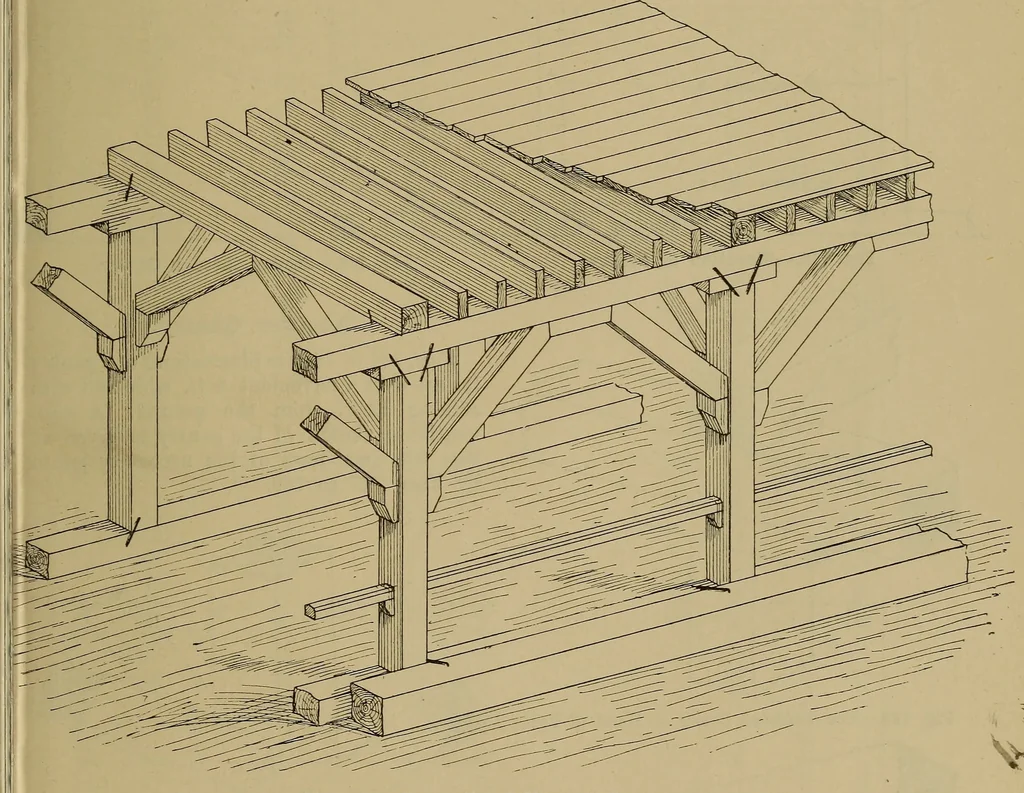

be used, then the| whole area of the platform should, previousto laying the deals, be covered with tarredfelt, to prevent water percolating throughto the annoyance of the public. Or, ifdouble sheeting scaffold boards be used, the contact with it will glide off; this is a verydesirable precaution.… … Fig. 764.—Conventional View of Gantry. joints, both lateral and heading, should belapped. The platform is then sanded, andthe sand worked into the joints with a broom.The guard frame is then fixed and boardedto the height shown at Figs. 757 and 758.The fender may now be laid in the gutterand dogged…
