Viollet-le-Duc, Eugène-Emmanuel, 1814-1879, Towle, George M. (George Makepeace), 1841-1893 · Boston : J.R. Osgood and Company · leaf 252

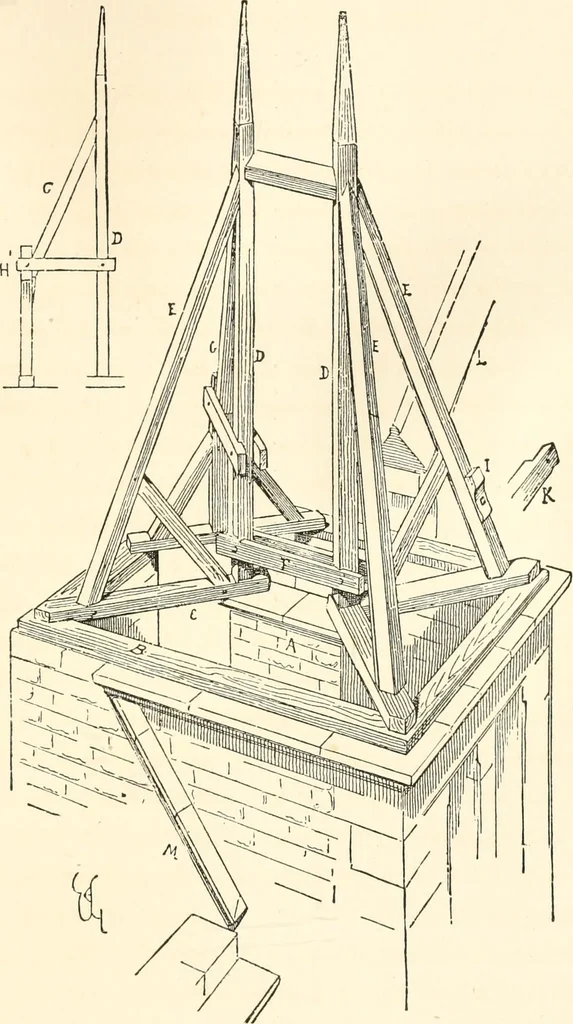

oin the face of the king-post of the dor-mer-truss, as I have drawn at G ; and that this dormer-trussmay not be pushed out of place by this hip, the braces Hwill unite the head of the king-post of the dormer-truss withthe king-post of the roof D. On the angles of the hips, at/, we must fix brackets… … Fig. 49.-ROOF OF THE MAIN STAIRCASE. — Page 214. THE CARPENTRY WORK. 215 against which the coverings in penetration are traced, stonefillets M, which form pads/ or solins, above these coverings,to prevent the rain-water from passing between the slatingand the wall. These pads are most often made of…
Architecture, Domestic · Building
