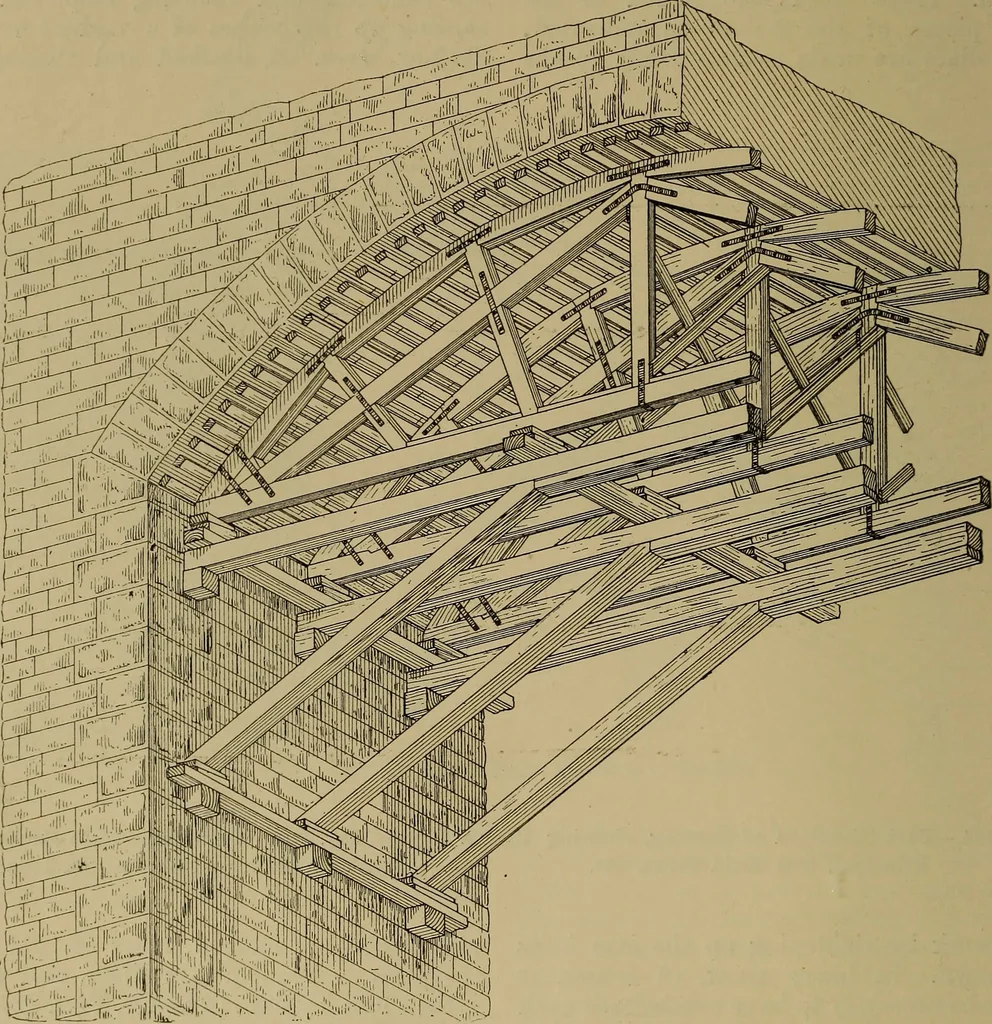

uts, tie-beam, and other members are next set out 248 CARPENTRY AND JOINERY. from the drawings and the various jointsmade. The ribs are set out and jointedwith the tie, heads of struts and king-post.Each principal is now fitted together, andwhen found satisfactory each of the parts forced up as… … Fig. 826.—General View looking from the Under Side, showing the Arrangement of the Various Members of the Shoring. joining together is worked, thus allowingeach principal to be taken to pieces and sentto the job. Iron straps are provided tosecure the principals when re-erected. Be-tween the plates…
