Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 382

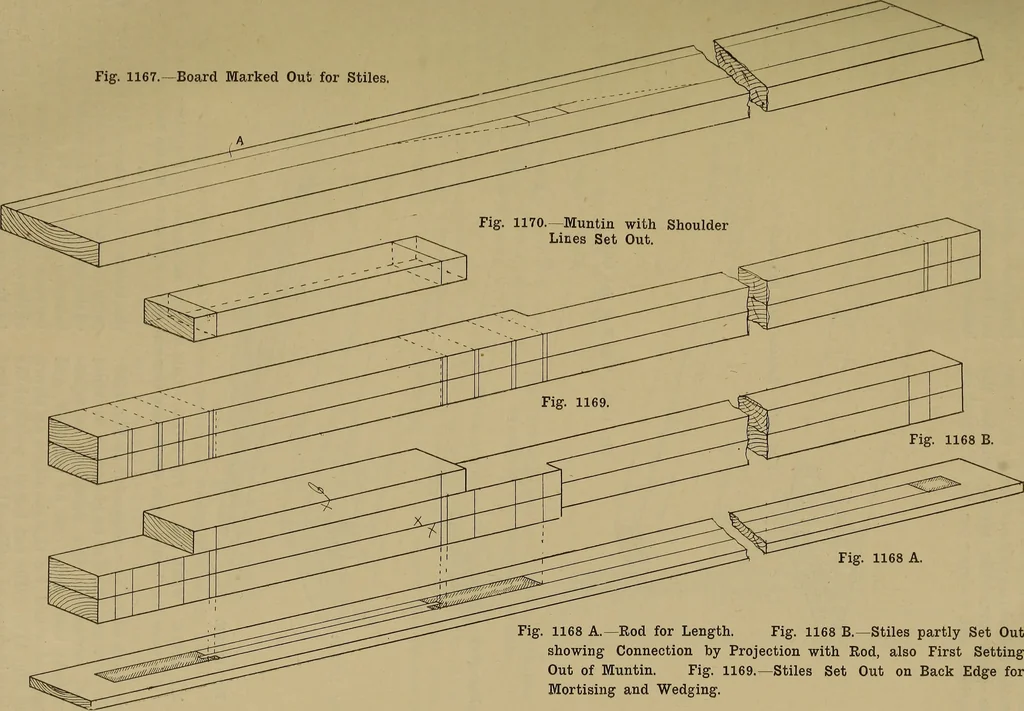

rness. One of the stiles should beplaced on the rod, and the positions for therails marked off ; then the sizes of the tenonsand allowance for haunchings should alsobe pricked off. The face sides of this pairof stiles should next be placed together withthe face edges outwards ; then squared downfor… … 354 CARPENTRY AND JOINERY. The relation between the rod and thesetting out of the stiles is clearly shown bythe projectors. The setting out for themortices and wedging can be completed on part of the setting out of the three railsfrom this is clearly shown projected above atd. The setting out for…
Carpentry · Joinery
