Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 390

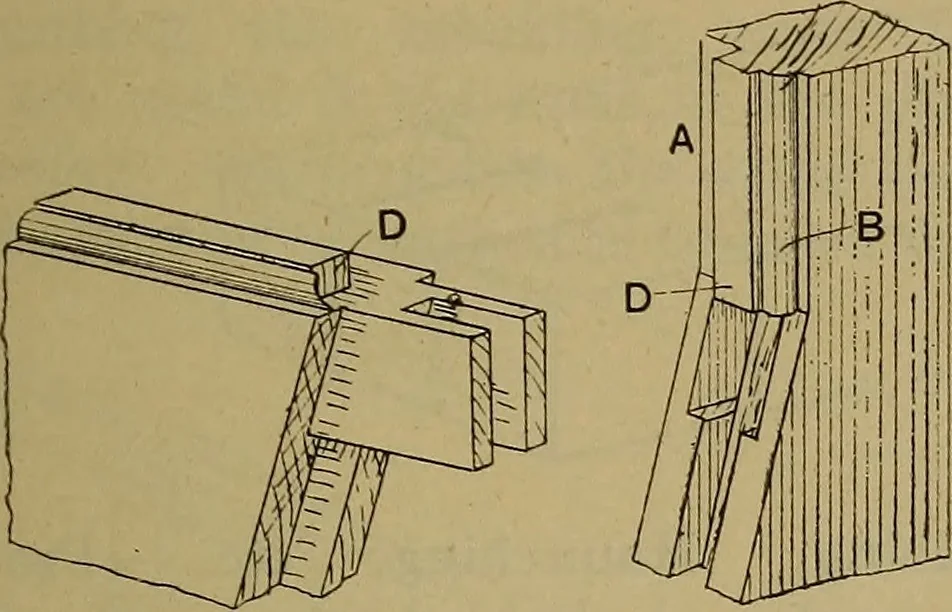

f miter-ing, and this method will be illustrated in afuture example. The frame, after fitting,would be wedged up, and a stretcher nailedacross the bottom in the usual way. Splayed Linings.—In these the only new DOORS AND DOOR FRAMES. 361 feature is that as the soffit is splayed as wellas the jambs,… … Fig. 1197.—Portions of Stile and Middle Rail,showing Mouldings Scribed Together. linings, and it will also represent the planof the intersection between the jamb andthe soffit. Projecting up, obtain the por-tion of the elevation shown by 1 b c, 2 a d,and then a b is the elevation of the…
Carpentry · Joinery
