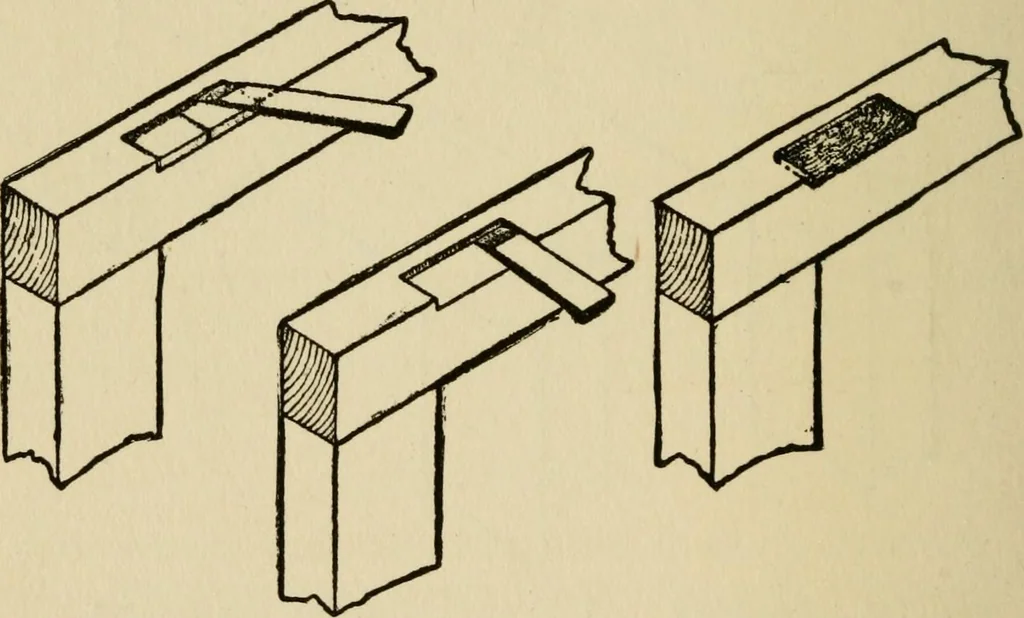

nd give you a wider gauge linethan was anticipated when you set the gauge. The inex- 95 Joints in Woodwork perienced worker nearly always overlooks this. The resultis a hinge-bound door, the cause of which is not discoveredby the worker because he is so sure that he has set thegauge correctly. The… … Fig. 228.Paring. Fig. 229. Clearing. Fig. 230.The Recess. that the general rule is to carry a line across the face ofthe work from the inside of the cross rail and place thehinge at E, as Fig. 226. Sawing for the Recess.—After marking out for thehinge, as shown at Fig. 226, take a fine-toothed saw…
