Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 392

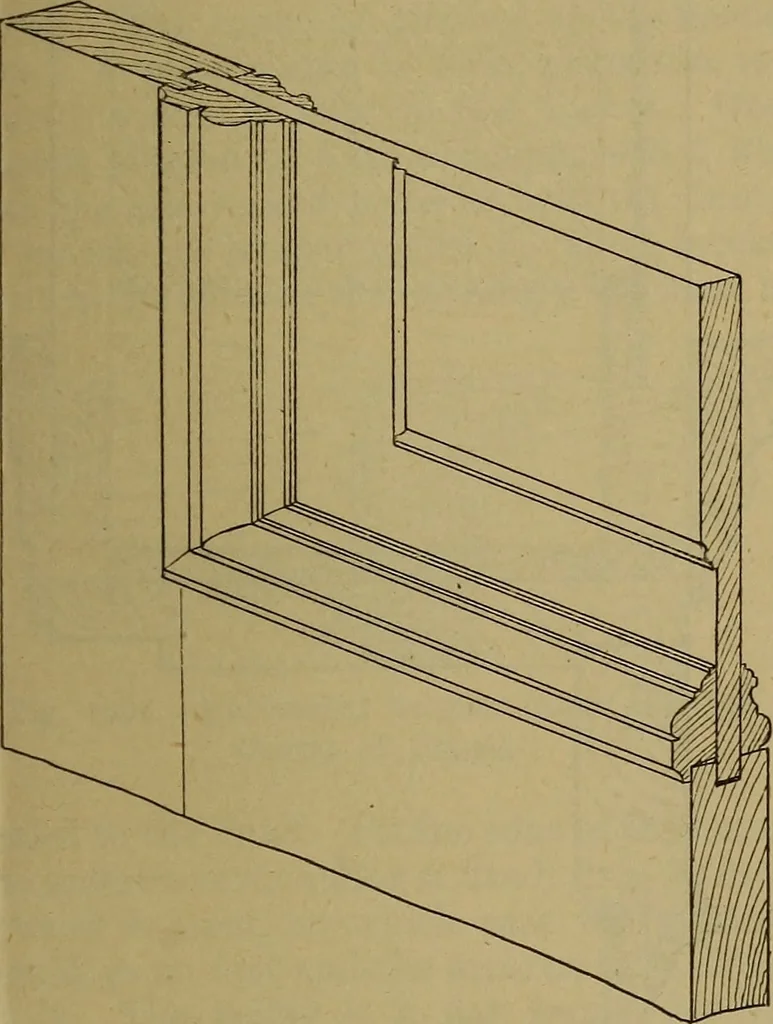

also cut down to DOORS AND DOOR FRAMES. 363 the same level, thus forming a square surfacefrom the square of the rebate to that of themoulding. Then, by cutting out a rect-angular piece from the horizontal bar, asindicated at b, and then cutting a rect-angular piece from the vertical bar asshown at… … Fig. 1201.—Conventional Sectional View, showingPanel, Bolection Moulding, and Inside Moulding. template, and first cut a mitre on the mould-; ing, which will produce an arris ; and if thisis accurately worked to with the scribinggauge, the fitting should prove satisfactory.The Panel.—The panel is…
Carpentry · Joinery
