Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 439

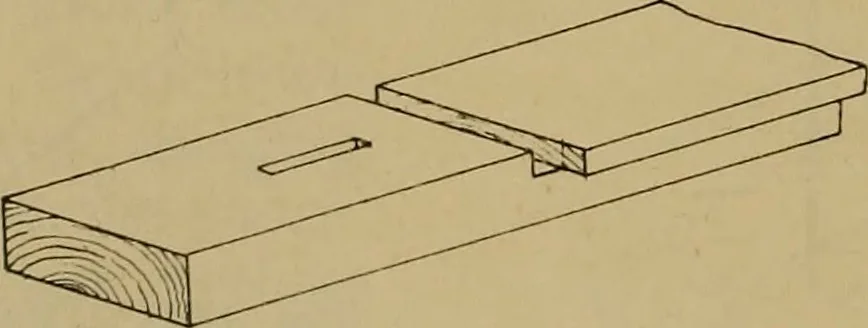

Fig. 1324.—Setting Out Head from Sill. … Fig. 1325.—End of Head Mortised for Parting Slip and Pared to receive Linings. piece of deal 10 in. long, 5 in. wide, and thickenough to plane up, tapering from 2 in. to1J in. in the breadth of the sill as indicatedat c and d in Fig. 1323. Next rebate oneside to fit the section of the sill as shown…
Carpentry · Joinery
