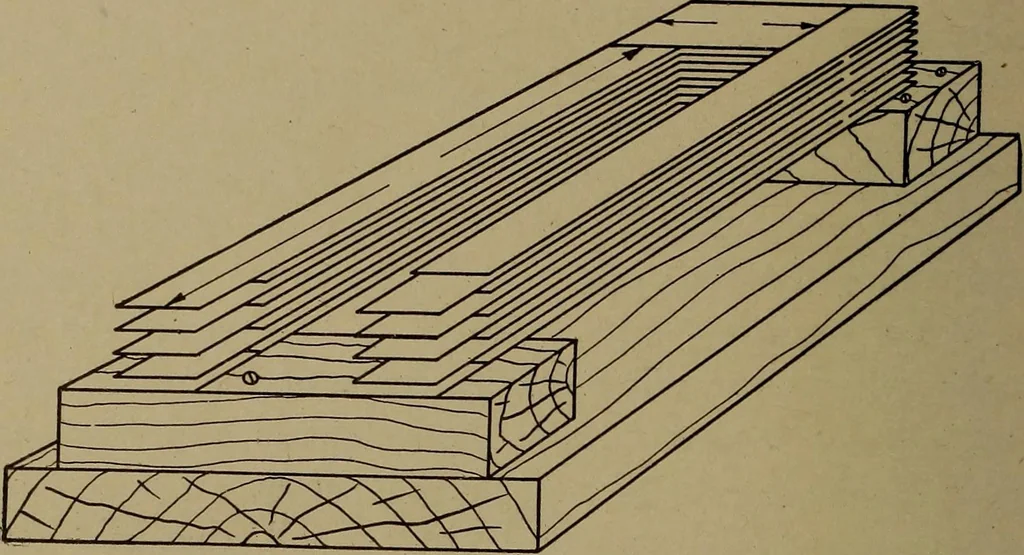

oated with shellac or an equallygood varnish, employing a brush. While the varnished stripsare drying, which will require at least twenty-four hours in a drytemperature of 70° F. the wooden base and the necessary blocksand strips may be prepared as shown in Figs. 19 and 20. 179 36 DESIGN OF SMALL… … Fig. 19. Method of Assembling Transformer Core bolts should be used instead of screws to hold AB and the core.By holding the core as indicated, the primary and the second-ary coils may be slipped on over the two legs of the coreand the end strips inserted to complete the iron core. Thismethod of…
