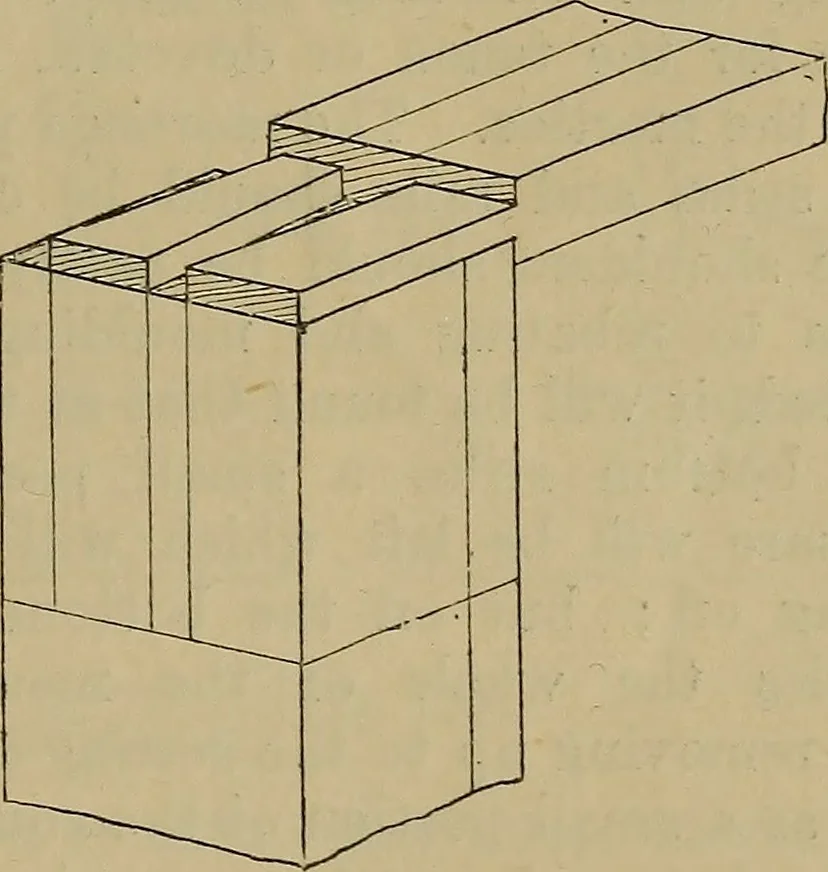

in eachcase, set to one of them, on the setting-outline of the under side of meeting rail, thatportion of the template squared across andmarked bottom, so that its tried-up edgecorresponds with the tried-up edge of thepulley stile, and then mark the dovetailswith the setting-out knife as indi-cated… … Fig. 1365.—Template applied to End of MeetingRail of Bottom Sash. the end of the template marked bottom on the end of the rail; make their tried-upedges agree, and then mark the endof the rail as shown at Fig. 1365.If these ends are previously rubbedwith chalk it will be found an advantage. 418…
