Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 468

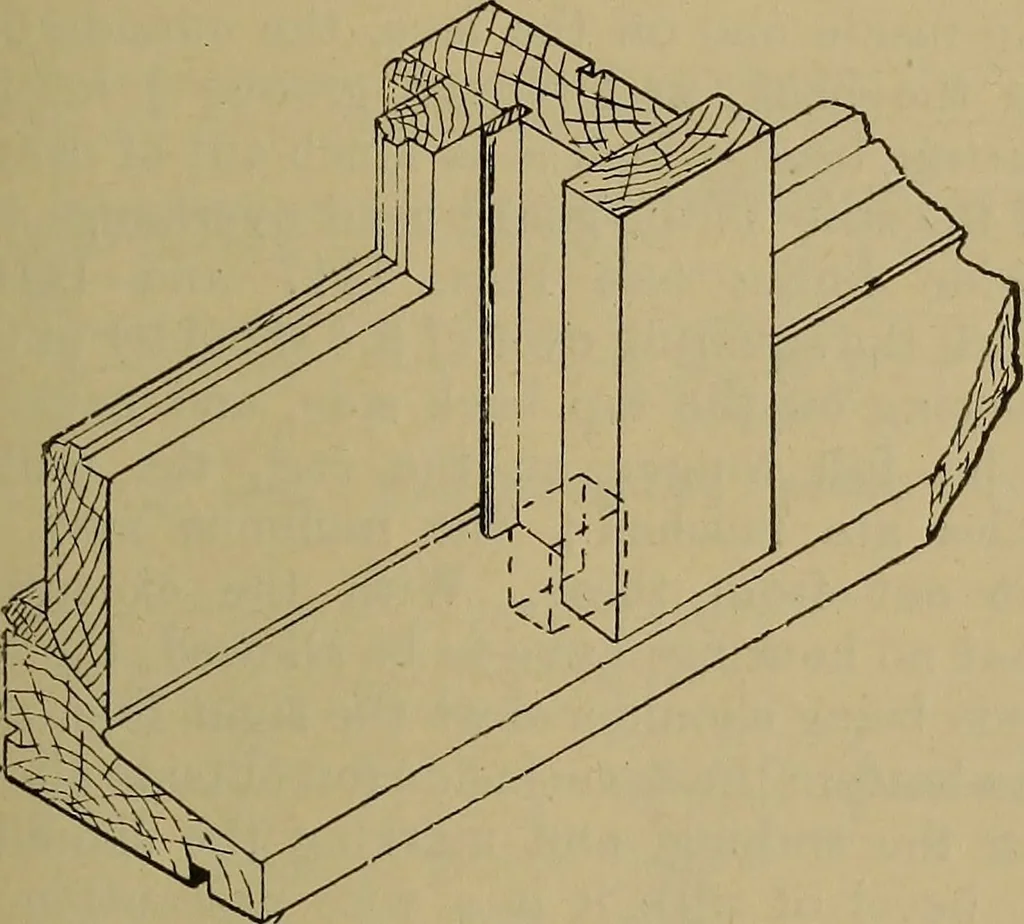

this isaccomplished by making a plough groovein the head of the outside side lights asshown at a in the conventional view (Fig.1418), and in the bottom sash by takingthe cord over pulleys in the mullion andpulley stile, and concealing it in the sideopenings by cover slips, as shown at b in… … Fig. 1419.—Isometric View of Joint of Mullionand Lining with Sill. on the rear side with a similar groove to thehead of the top light. This arrangementis shown at Fig. 1418. It is assumed thatthe stuff is machine wrought. Quantities for Solid Mullion Frame.—One oak sill, length 2 in. longer than…
Carpentry · Joinery
