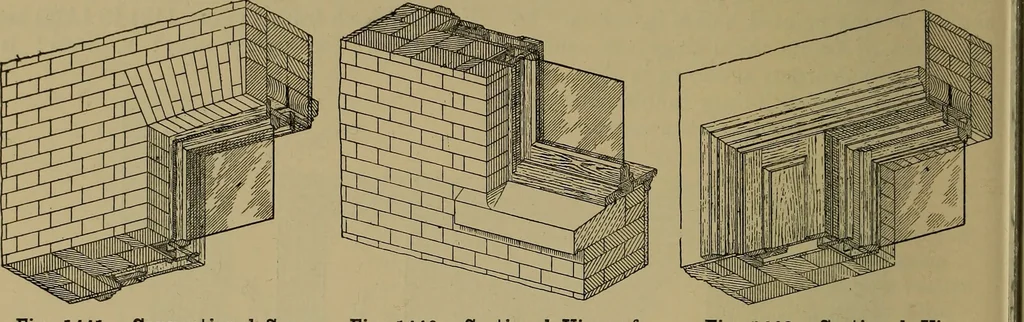

g.A camber gauged arch is shown, having astraight extrados and cambered intrados,the depth of the arch at the springing being12 in. Fig. 1443, which is a sectional viewof the window as seen from the inside, various parts being prepared to the sizesindicated in the enlarged detail (Fig. 1448).The… … Fig. 1441.—Conventional Sec-tional View of Top Corner ofWindow. Fig. 1442.—Sectional View of Bottom Corner of Window showing Sill, etc. Fig. 1443.—Sectional Viewof Window from Inside. shows the top corners of the sash, shutters,and architraves. Conventional views showingthe details of the brickwork…
