Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 478

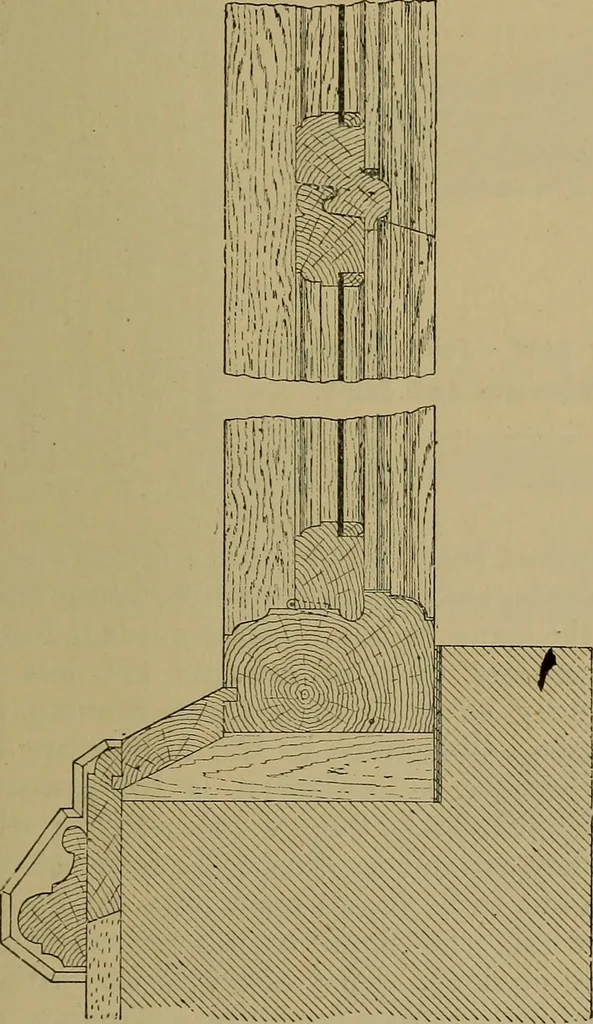

2.—Horizontal Section ofFig. 1450. Fig. 1452. WINDOW SASHES AND CASEMENTS. 445 teak, is double-sunk and splayed to receivea special water bar as shown. This is prob-ably one of the best methods of excludingwet. The water bar is hinged, and, whenthe casements are closed, is held up againstthe… … Fig. 1453.—Enlarged Detail of Horizontal Section(Fig. 1452). inserted to prevent water finding its waybetween the wooden sill and the stone sill.The wooden sill is to be also ploughed onthe inside to receive the floorboards. Asection through the sill and water-bar whenthe casements are open is…
Carpentry · Joinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
