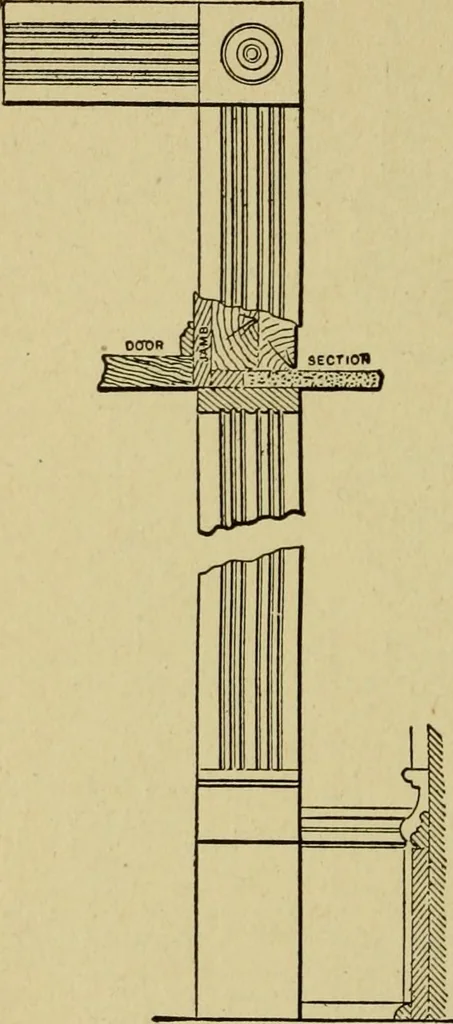

Fig. 159. 158 ARCHITECTURAL DRAWING SELF TAUGHT shown in section. This style of finish is calledblock finish, because of the turned block being placed on the corner.Fig. i6i exhibits acorner of a balloonframe, showing themanner of placingthe studs, cornerboards and otherfinish. I show at Fig. 162a… … Fig. 160. Fig- 161. method of construction is made quite apparentand can easily be followed. The walls areboarded or sheeted on the outside, and thencovered with siding or clapboards. ARCHITECTURAL DRAWING SELF TAUGHT 159 The next drawing, Fig. 163, shows a section ofa corner for a brick wall. The…
