Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 551

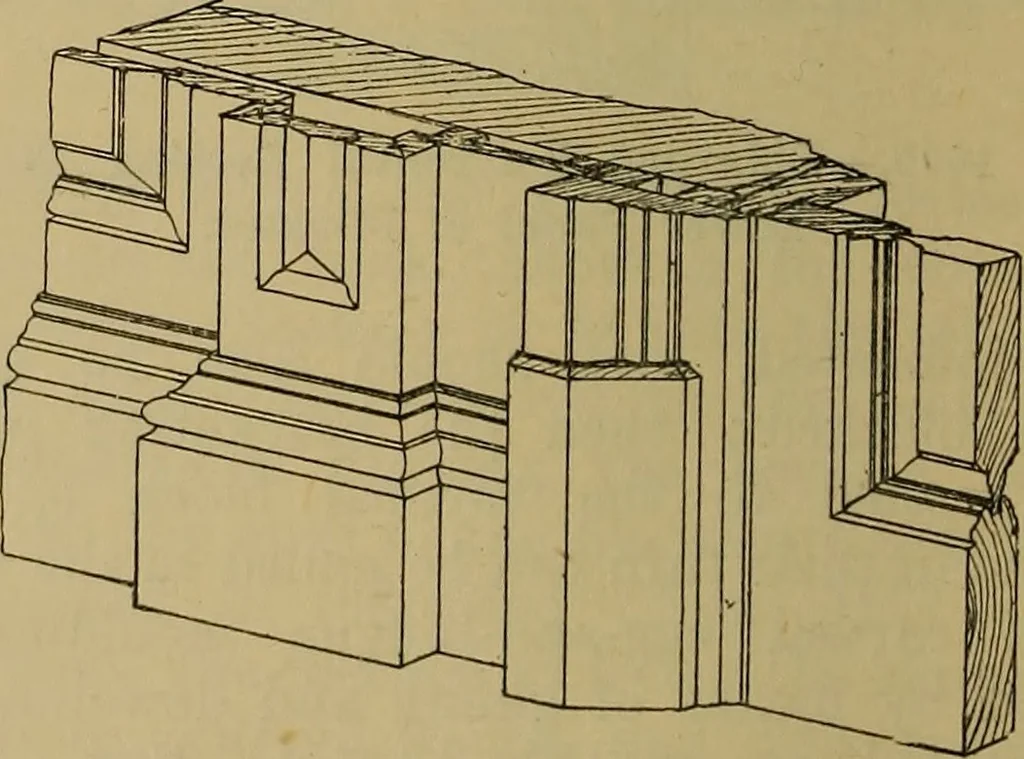

ing, andare prepared with a barefaced tongue soas to fit into the rebate of the fillet a. Thepilasters are also held to the edges of theframing by buttons, two of these (a a,Fig. 1684) being shown screwed on to theback of the returned edges of the pilasters ;and buttons are screwed on to the… … Fig. 1685.—Conventional Sectional View showing Bottom Left Corner of Door Base of Architraves, Pilaster, etc. SKIRTINGS, DADOS, PANELWORK, LININGS, ETC. 517
Carpentry · Joinery
