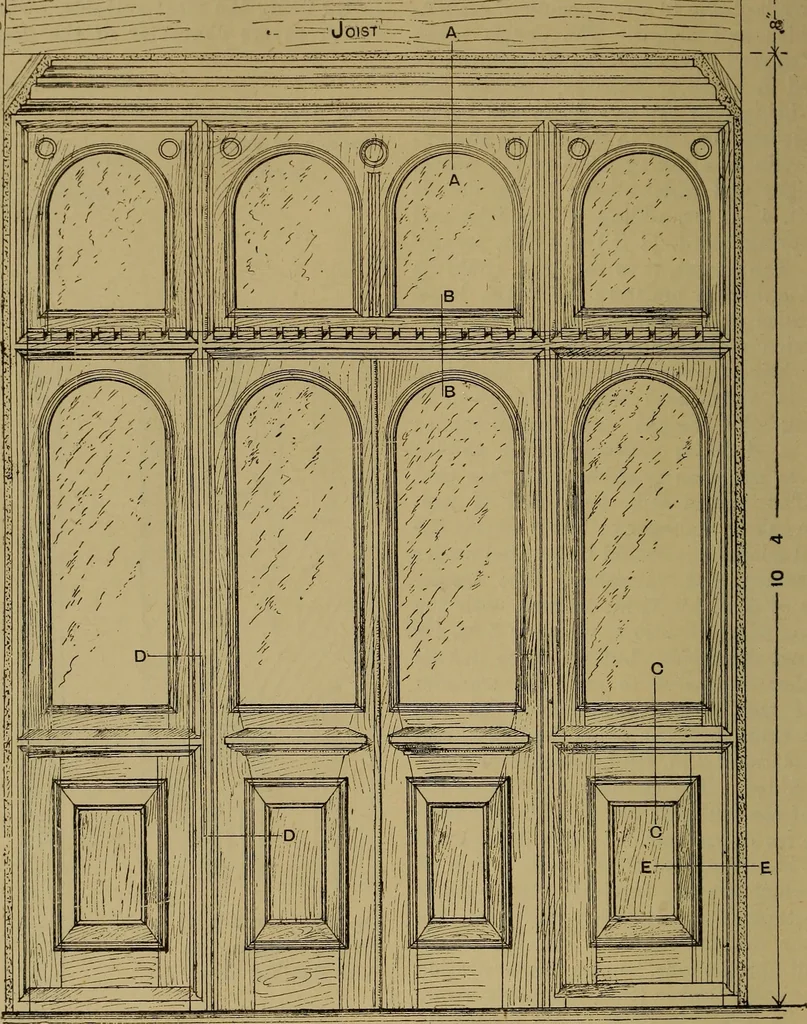

Fig. 1720.—Section of Vestibule Screen on Line B B (Fig. 1722). form the cornice, rough brackets are fixed atintervals to receive the plaster, a suitablekey being formed on the head of the screenby the bead, as shown in the detail. Forsections on the lines indicated by letteringin the usual way on… … Fig. 1722.—Elevation of Vestibule Screen.
Carpentry · Joinery
