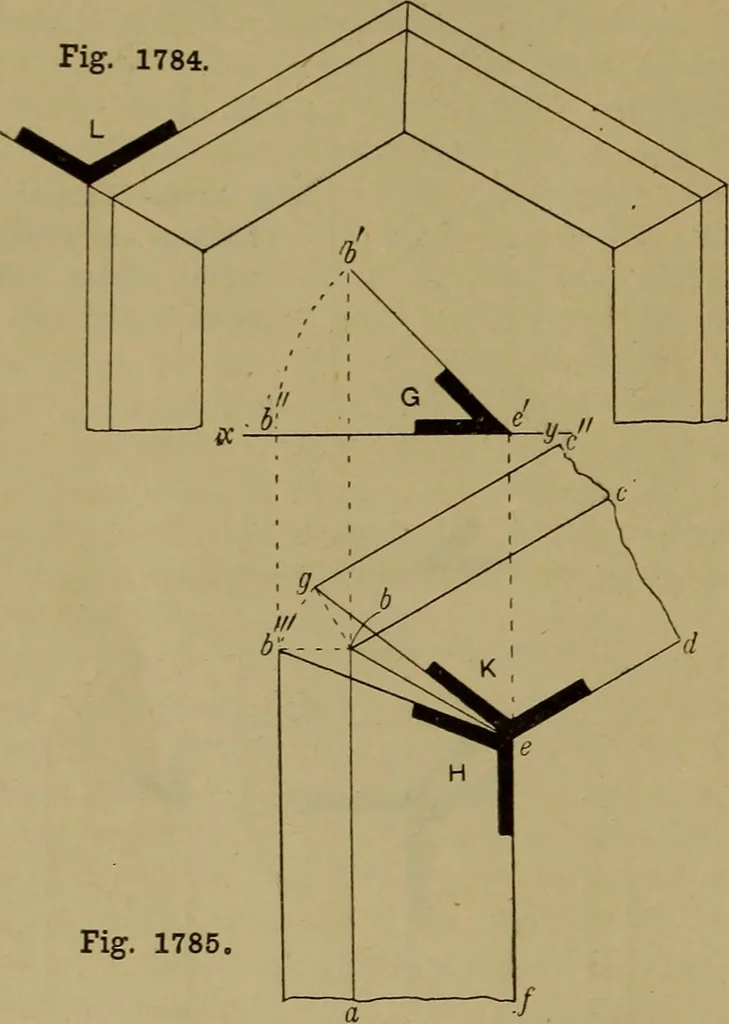

clined ; and at Fig. 1783 is shown thegeometrical working. Two elevations are 552 CARPENTRY AND JOINERY. given, namely, one at x y and the secondat a? y\ each x y being at right angles toa horizontal trace. The bevel at a is forapplication to the edge of the piece of stuffshown in plan at b, the… … Fig. 1785 Fig. 1784.—Plan of Part of Hexagonal Objectwith Inclined Sides and Mitered Angles. Fig. 1785.—Geometrical Construction to ObtainBevels for Fig. 1784. or similar article, the sides of which areinclined and mitered together as shown,the edges being in parallel planes. Themethod of obtaining…
