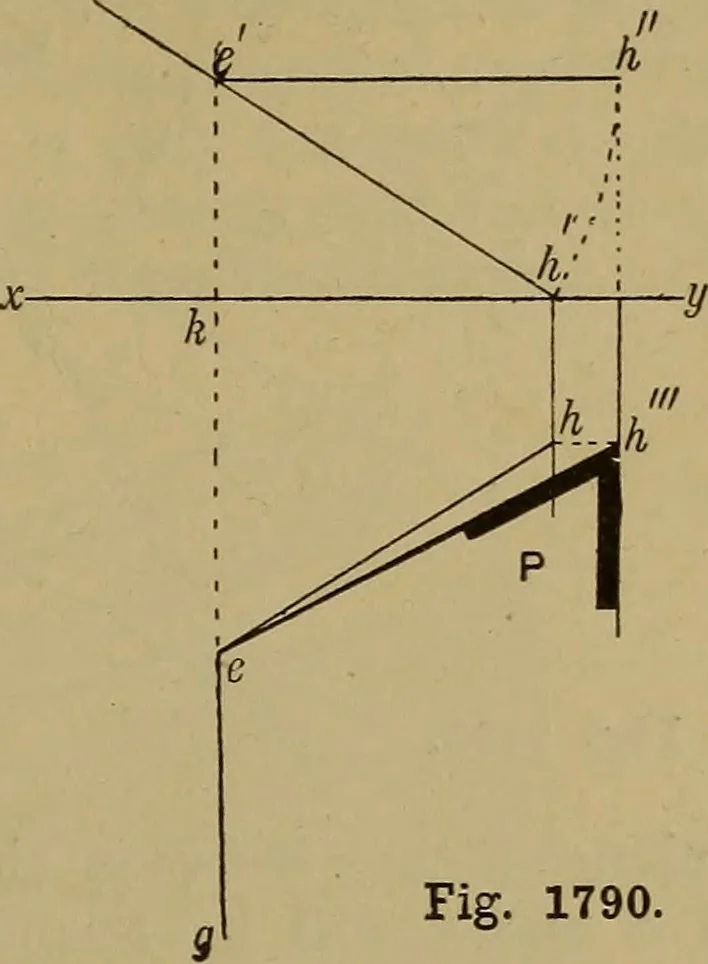

reference to Fig. 1791, which shows pictori-ally the principle of working, the constructionwill be plainly evident. Bevels for Mitered Angles of TriangularHopper.—At Fig. 1792 are shown the plan andelevation of a triangular hopper. Let it berequired to find the angle between the twosurfaces, and… … 1789. Fig. 1788.—Sides meeting at an Obtuse Angle and having Square Edges.Figs. 1789 and 1790.—Alternative Methods for Obtaining Bevel for Mitre on Square Edge. the bevel is ascertained. Fig. 1788 showsthe part plan and part sectional elevationof a corner of an object of which the sidesform an…
