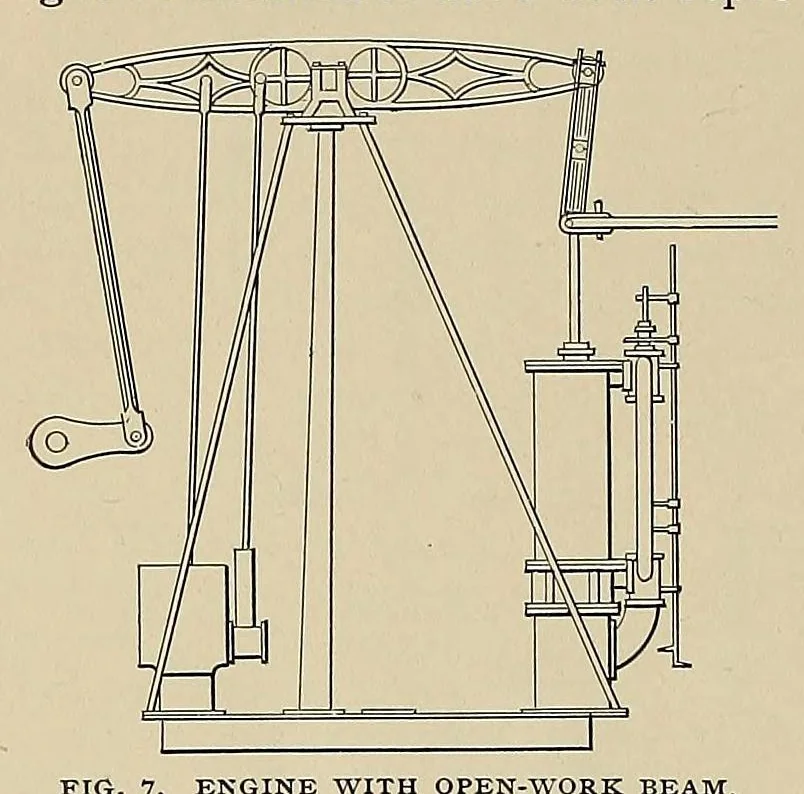

CASSIER'S MAGAZINE. 362 ship to the Fulton (Fig. 3). The second ings that the modern construction which plate is so exactly a reproduction of the puts the condenser directly at the bot- Fulton that were it not for the name tom of the cylinder, had been thought Washington upon the wheel house it of… … FIG. 7. ENGINE WITH OPEN-WORK BEAM. gine was like that of the Cornish pumping duced from the earlier original which engine with which the engineers of that has been under consideration. (Fig. 4). day had been brought up (Fig. 5), The Washington, however, was the but already the upper and lower…
