Catalogue "C" of pumps and hydraulic machinery for every service .. (1903)
Goulds manufacturing co. [from old catalog] · [Seneca Falls, N.Y.?] · leaf 156

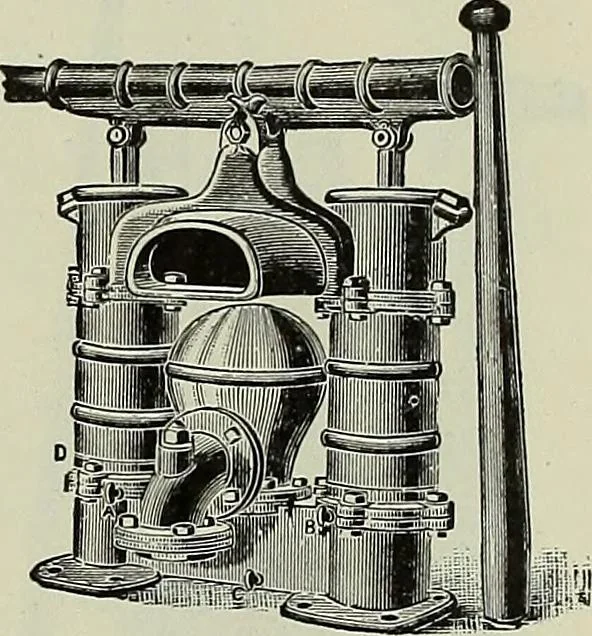

o the vacuum chamber above the valves, so that they arealways submerged; the plungers are always made of brass, with large water-ways. We also furnish two and three-way cocks, at extra list price. Seeunder Fig. 579. Fig. 578. Sizes, Prices, Etc. DiameterCylinders Stroke Capacityper Rev. Suction… … Fig. 578 Goulds Ships Main and Bilge Pump With Wronght-Iron Extension Levers Fi?- 579 represents our improved Ships Main and Bilge Pump, fullydescribed above, arranged with wrought-iron extension levers, so that a largeforce of men can be employed in operating it. We also furnish two andthree-turn…
Pumping machinery
