Hawkins, N. (Nehemiah), 1833- · New York : Theo. Audel · leaf 195

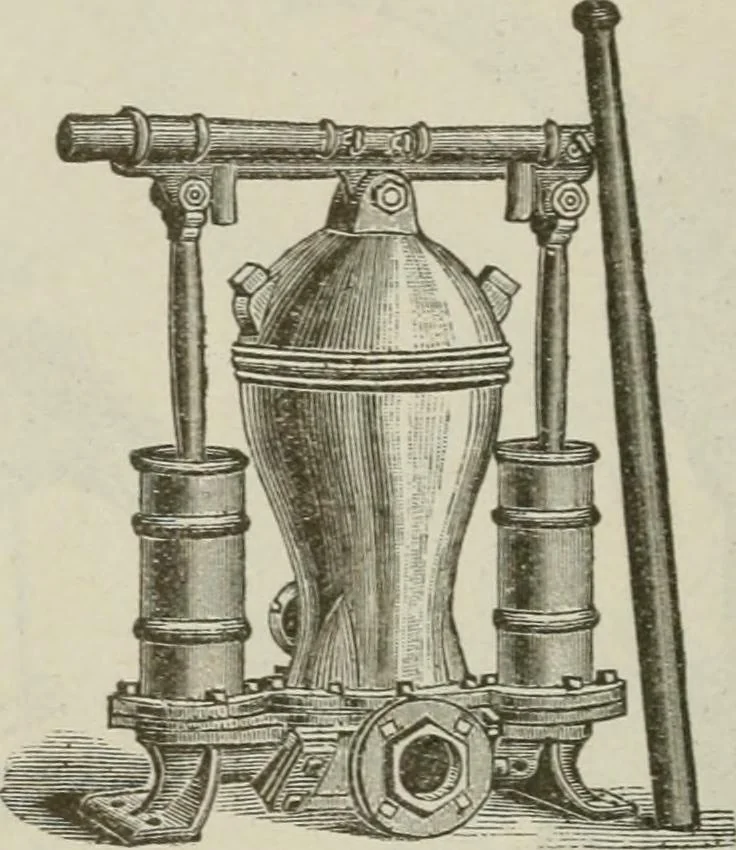

e Pumparranged with extension levers. When these levers are put inplace, they afford room for a large force of men to work, andrenders this pump a most powerful engine for throwing wateron fires, or supplying it for many uses about factories, ware-houses, wharves, etc. The discharge hose can be… … Fig, Itio. TABLE OF SIZES, CAPACITIES, ETC. No. Diameter Cylinder stroke Capacityper Rev. Discharge Suction »I.ift auJForce 4 i 3 in- 6K in. .40 gal. iX in- hose i>^ in. pipe 100 ft. 6 ! 3>^ 6^ •54 1% • 2 75 8 i 4 8 .87 2 ^% 75 10 1 aY^ 8 1.10 2 iVz 75 12 1 5 8 1.36 2 2>^ 75 16 6 7 1.96…
Hydraulic machinery · Pumping machinery
