Catalogue "C" of pumps and hydraulic machinery for every service .. (1903)
Goulds manufacturing co. [from old catalog] · [Seneca Falls, N.Y.?] · leaf 197

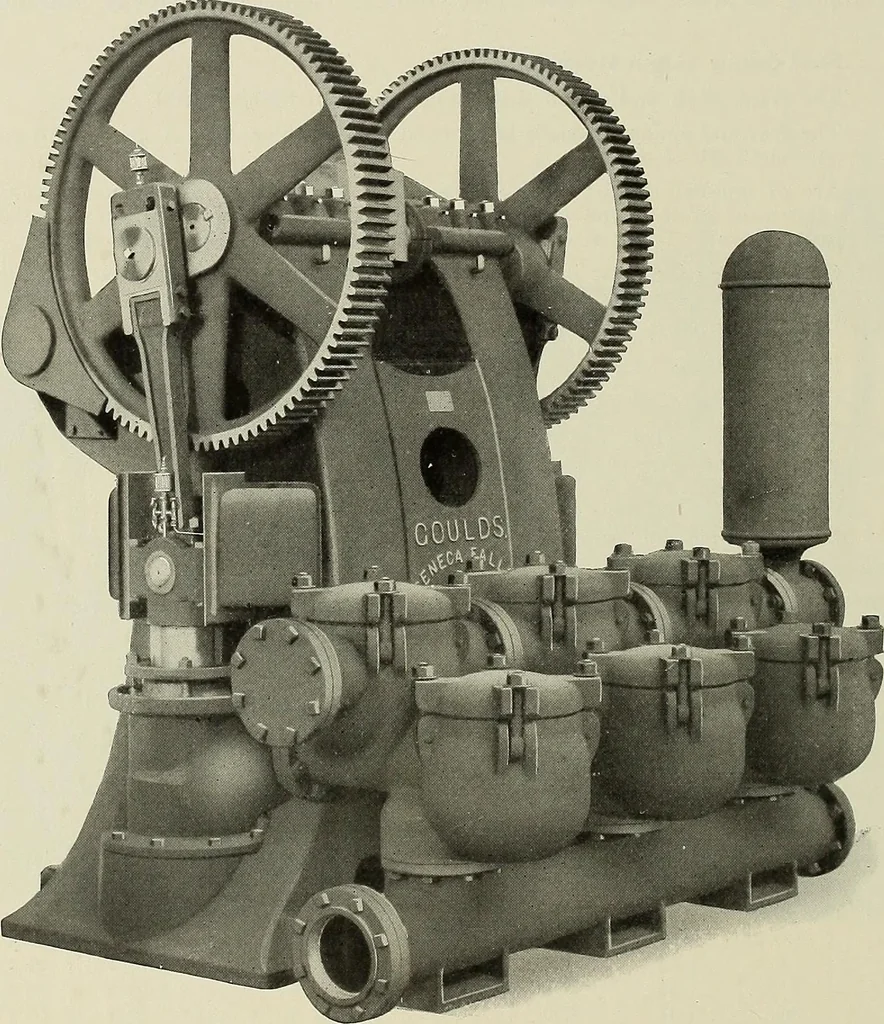

ps. Fig. 957- Sizes, Capacities, Etc. Plungers Capacity oneRevolution ofCrank Shaft Usual Speed and Capacity per Minute Sizes ofPipe Geared Tight andLoose Pulleys Cipher Diameter Stroke Suction Discharge 4 in. 5 7 8 8 6 in.8 •8 10 12 1.0 gals. 2.0 4.0 6.5 7.8 50 revs., SO gals.45 90 45 180 42 273… … 230 to 3500Feet Elevation Pig. 1283, Type 9 X 12 and Smaller Sizes Specification Fig;. 1283. Single Acting Triplex Plunger Pump, for 100 to 1500 pounds working pressure, or230 to 3500 feet elevation, per table below. — General Water Supply, Municipal Water Works, Boiler Peed-ing, Hydraulic…Pumping machinery
