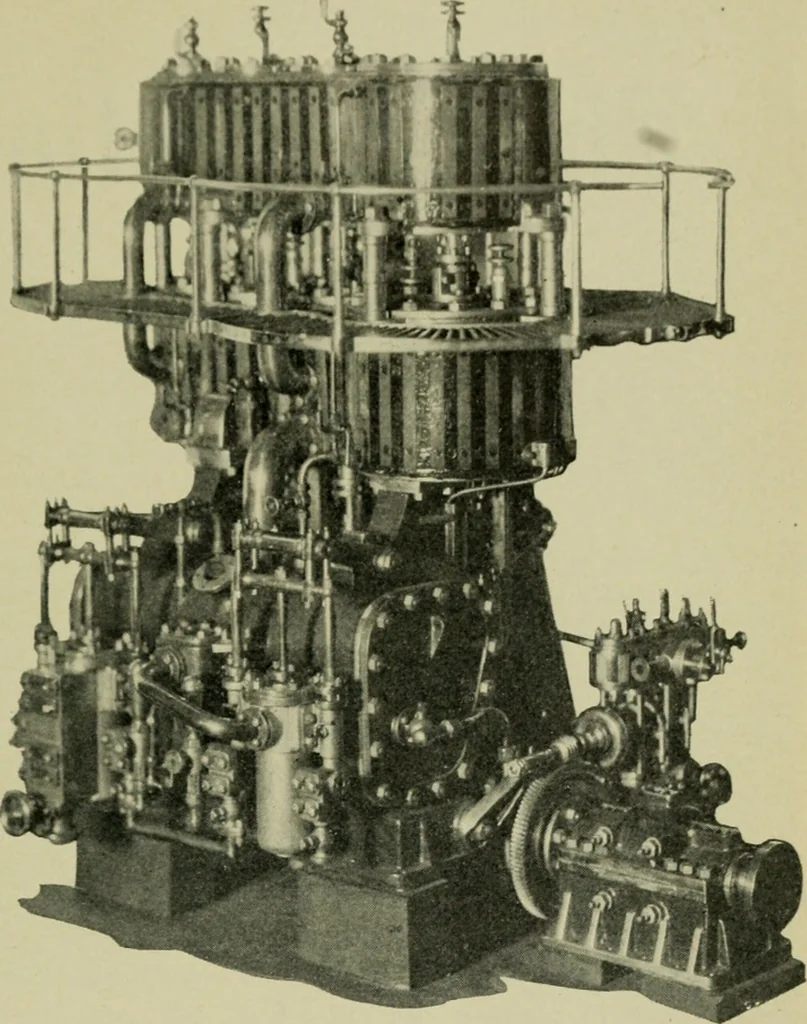

le of % to the foot a 1,000 hp. engine of thefollowing dimensions: Diameter of high pressure cylinder 14; firstintermediate. 22 ; second intermediate, 32; low pressure, 45; stroke,28. The model is complete in every respect, with such details as asurface condenser, air pump, circulating pump and… … area than the lower one, so that when the engine is in operation thesteam pressure on this excess area balances the weight of the valve,valve stem and rod attached. This tends to reduce the friction of theeccentric materially. The engine has no receivers, the valves and nozzlesbeing of sufficient…
