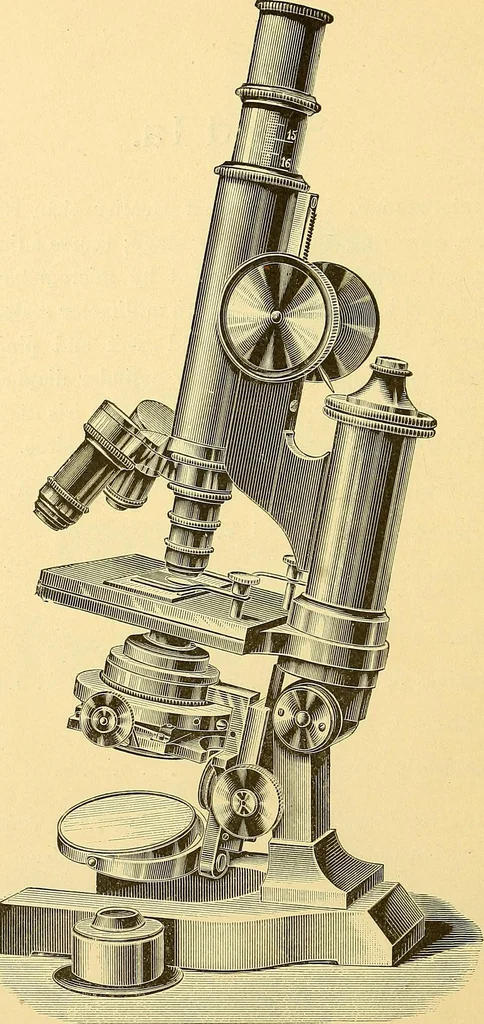

ondenser. Triple nose-piece. Objectives 2, 4, 7 and oil immersion I/12., N. A. 1.30. Eye-pieces I, III, IV and V. Magnification from 32 to 1200 160.— 4b. The same. Objectives 3, 7 and oil immersion x/12, N. A. 1.30. Eye-pieces I, III and IV. Magnification from 57 to 850 148.— Stand la, as described… … Stand lb. With fixed stage.) — 23 Stand lb. Nr. •5. Large microscope with fixed stage, inclinable; coarse adjust-ment by rack and pinion, fine adjustment by micrometerscrew with graduated head; draw tube with millimeter scale;Abbe condenser as in Nr. 4; triple nose-piece. Objectives 3, 7 and oil…
