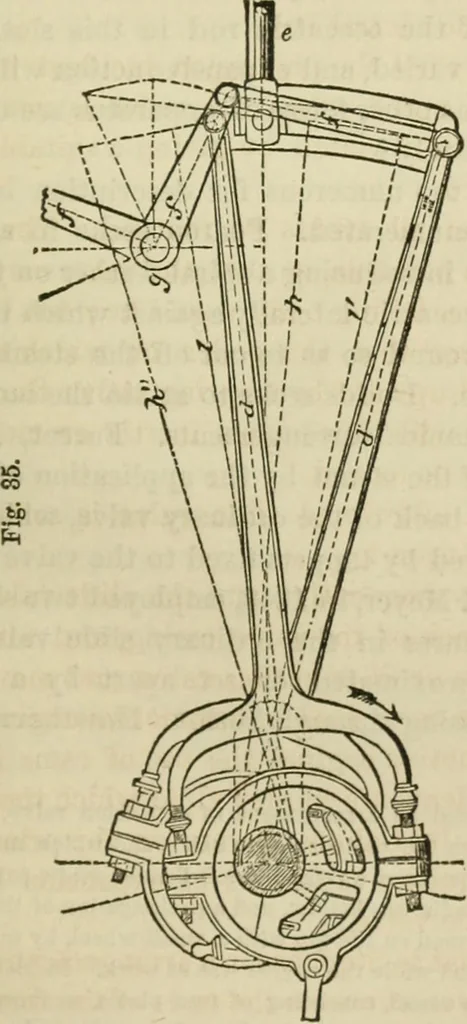

ceives the motion due to that eccen-tric ; whereas if the backward eccentric rod is brought in a linewith the valve rod, the valve gets the motion proper for revers- STEPHENSONS LINK MOTION. 99 ing, and if the link be so placed that the valve rod is midwaybetween the two eccentric rods, the valve… … attached by a pin to an open curved link susceptible of beingmoved up and down by the bell-crank lever//, supported onthe centre g, and acting on the links/, while the valve rod eremains in the same horizontal plane; d d are the eccentricrods, and the link is represented in its lowest position.…
