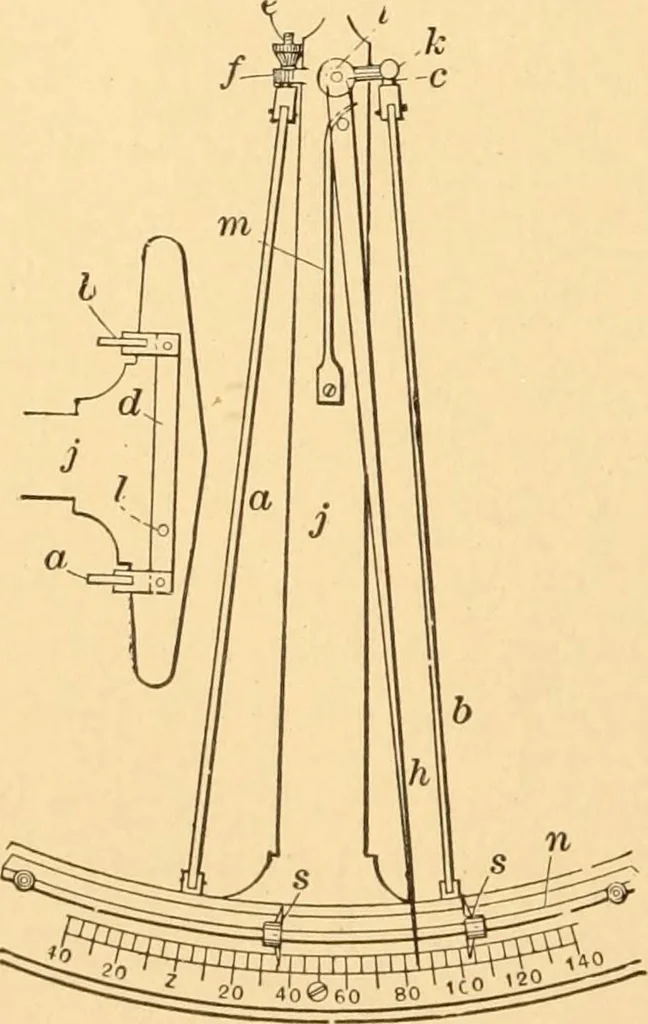

r. 50. The compound bar. 51. MAXIMUM AND MINIMUMRECORDING THERMOMETER. «, b, two strips or rods of hard rubber at-tached to the index arm k, and the ad-justing post /. The lower ends pivotedto the lever d, /, shown on the side figure.m^ a spring to take up looseness. /, awooden frame. s, s, two… … MEASUREMENT OF POWER, SPRINGS. 41 52. SUNSHINE RECORDING THERMOMETER. Extend-ing from the instrument in the room through the roof is an iron pipe. On its upper end it carries aniron bar, b, to which is fastenedfirmly, at r, the metalhc ther-mometer bar, d; from the looseend of this bar a fine…
