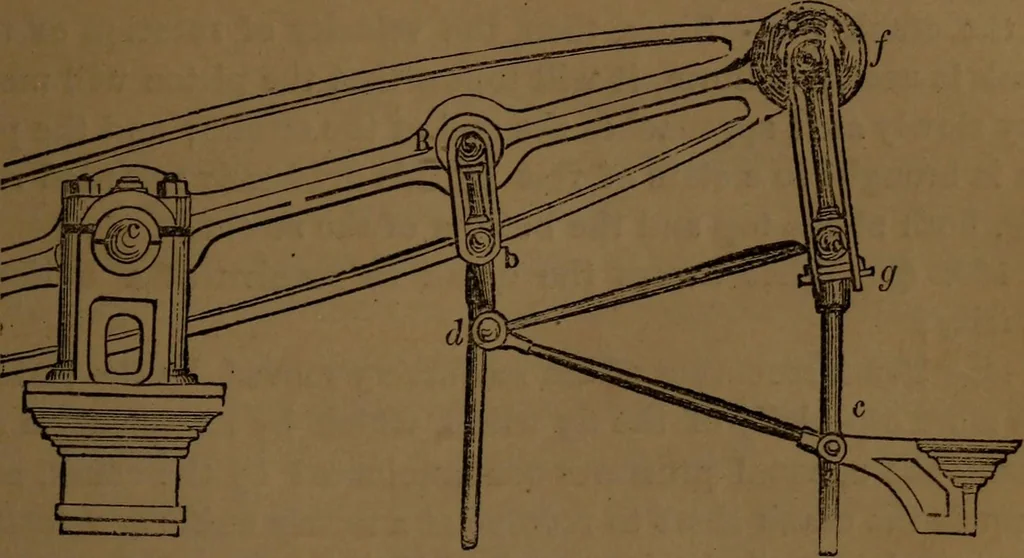

he end of these two rods atd are two other rods c d^ of which the ends at c are attached tostationary pins, while the ends at d follow the motion of thelower ends of the links 1) d. These rods are called the radiushars. Now it is obvious that the arc described by the point d^with c as a centre, is… … versed sine of the arc described at g^ or, in other words, the linedescribed by the point g becomes a straight line instead of acurve. 107. Q—Does the air pump rod move vertically as well asthe piston rod ? A.—It does. The air pump rod is suspended from a crosshead, passing from the centre of one…
